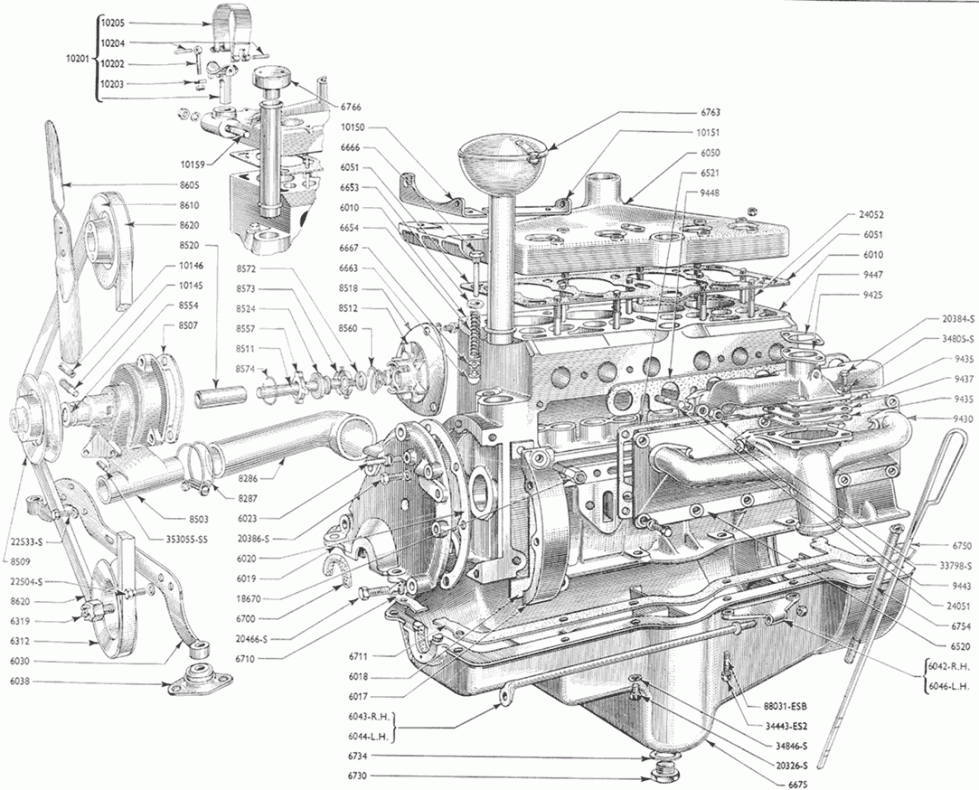

engine exterior 8 & 10hp
For identification purposes only, reproduced from Ford Motor Company parts list book.
Parts Shown
- AP9425SU: Aquaplane inlet manifold Twin SU carburetors from £147.62 each
- AP9430E93A: Aquaplane exhaust manifold from £274.13 each
- AP6520Y: Aquaplane valve chest cover from £137.02 each
- AP6520F: Aquaplane valve chest cover Ford 8 & 10 hp and 100E from £219.73 each
- AP6375: aquaplane aluminium flywheel with gear ring from £206.44 each
- AP6019: aquaplane front timing cover (plain) from £157.50 each
- AP6019RC: Aquaplane front timing cover (rev counter) from £219.44 each
- AP6030: aquaplane engine mounting bracket from £0.00 each
- AP8501: Aquaplane water pump from £258.56 each
- E83W8286B: bottom radiator hose from £34.14 each
- B368620: fan belt from £19.31 each
- 10ENG: 10hp engine full gasket set from £60.95 each
- 8ENG: 8hp engine full gasket set from £63.98 each
- E15Z1: 8hp decoke gasket set from £45.88 each
- E16Z1: 10hp decoke gasket set from £37.15 each
- 810CONV: conversion gasket set from £28.37 each
- YE6023: timing pin from £13.39 each
- Y6038: Engine mount front from £29.43 each
- 20451S2: Engine mount bolt from £3.22 each
- E04A6050: 8hp cylinder head refaced from £105.76 each
- E93A6050: 10hp cylinder head refaced from £105.76 each
- YE24052C: Cylinder head stud (short) from £6.75 each
- YE24052E: Cylinder head stud (long) from £6.95 each
- 33800S7: Cylinder head nut set from £17.18 set
- YE6051B: 8hp cylinder head gasket from £32.80 each
- 7W6051A: 10hp cylinder head gasket from £32.03 each
- 526087B: Water inlet pipe from £15.51 each
- YE8286: Bottom radiator hose from £32.95 each
- E493AFS8591: Water pump rebuild kit from £72.47 each
- E10ENG: full gasket set 10hp engine from £60.95 each
- VE8ENG: full gasket set 8hp engine, narrow block from £52.62 each
- E8ENG: full gasket set 8hp engine from £63.98 each
- E14Z1: Decoke gasket set 8hp, narrow block from £80.57 each
- E810CONV: Conversion gasket set from £29.02 each
- Y6050: Cylinder head refaced, early 8hp from £97.73 each
- 7Y6050A: cylinder head refaced, 8hp from £97.73 each
- 7W6050: cylinder head refaced 10hp from £105.76 each
- Y6051: Cylinder head gasket, narrow block from £61.89 each
- Y6312: Crankshaft pulley for gear driven cam engine from £95.55 each
- Y8260: top radiator hose from £9.25 each
- Y8250: Connection, cylinder head water outlet from £47.38 each
- AP6050E93A: Aquaplane cylinder head for E93A/10HP engine from £460.55 each
- Y24051: Manifold stud from £8.25 each
- AP9410N: deep manifold nut from £7.54 each
- Y8286: Bottom radiator hose from £7.68 each
- 88031ESB: Stud from £6.87 each
- 88386S: Stud 1 7/16 inch long from £3.94 each
- 7W6051ELVA: 10hp Elva head gasket from £83.76 each
- Y9435: gasket (inlet & exhaust hot spot) from £6.09 each
- E93A9437: hot spot plate from £14.24 each
- E93A18670: oil cleaner connection from £8.73 each
- E93A6505B: Inlet valve Short length 4 9/64" from £17.92 each
- E93A6505E: Exhaust valve Short length 4 9/64" from £22.92 each
- YE24052AQ: Cylinder head stud from £83.90 pack
- YE9448: manifold gasket 8hp from £7.00 each
- CE9448A: manifold gasket 10hp from £7.00 each
- A17540: manifold connector for vacuum wiper motor from £4.62 each
- E93A6051AQ: copper cylinder head gasket from £80.02 each
- B17542: vacuum takeoff nut from £5.14 each
- E93A9430A: exhaust manifold 8hp and 10hp from £153.18 each
- 406754: Dip stick tube from £19.54 each
- CE9447: carburettor gasket 10hp from £2.67 each
- Y9447: carburettor gasket 8hp from £2.89 each
- YE6050B: cylinder head refaced, 8hp model Y from £97.73 each
- YE10202: eye bolt from £14.94 each
Applies to Vehicles
- Ford Model 19, Y (1932 to 1937)
- Ford Model 20, C & CX (1934 to 1937)
- Ford Eight, Model 7Y (1937 to 1939)
- Ford Ten, Model 7W (1937 to 1939)
- Ford Anglia, Model E04A (1939 to 1948)
- Ford Prefect, Model E93A (1939 to 1948)
- Ford Anglia, Model E494A (1949 to 1953)
- Ford Prefect, Model E493A (1949 to 1953)
- Ford Popular, Model 103E/104E (1953 to 1959)
- Ford 5 cwt. Van, Model E04C (1940 to 1948)
- Ford 5 cwt. Van, Model E494C (1949 to 1954)
- Ford 10 cwt. Van, Model E83W (1938 to 1957)
- Ford Estate Car, Model E83W (1949 to 1957)
- Ford Pickup, Model E83W (1950 to 1957)
