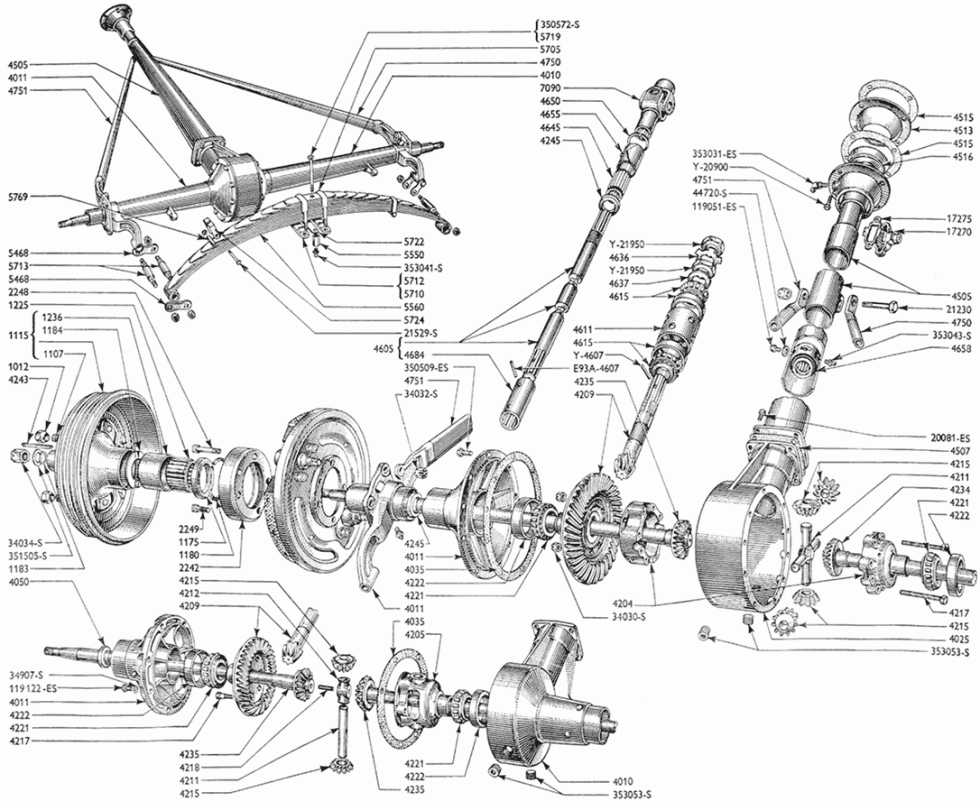

rear axle & torque tube
For identification purposes only, reproduced from Ford Motor Company parts list book.
Parts Shown
- YE4209F: Crown wheel & pinion gear set 3259 from £312.70 each
- YE4209G: crown wheel & pinion gear 4.7 to 1 ratio from £472.64 each
- 7W1236: rear wheel bearing race from £75.65 each
- Y1175A: rear hub seal from £10.27 each
- B1183: rear hub gasket from £1.03 each
- 681225A: rear wheel bearing from £54.86 each
- 184035: gasket for rear axle housing from £9.58 each
- 684221: Differential bearing from £49.66 each
- 684222: Differential bearing race from £29.96 each
- EB4245A: half shaft seal from £11.81 each
- E62A5713B: Shackle stud from £19.07 each
- E493A4050: seal (half shaft) from £11.94 each
- E93A4020: Spring shackle bush 22.2mm OD, 9.5mm ID, 44.6/50mm long from £26.87 each
- Y4217: diff gear case bolt from £4.04 each
- Y4221/Y4222: diff bearing assy from £34.39 each
- Y4243: half shaft key from £4.43 each
- Y4636: tab washer (driving pinion nut) from £5.13 each
- 405464B: Shackle stud assy from £20.87 each
- 7W5468A: shackle stud plate from £3.82 each
- E93A5465C: bolt from £1.80 each
- E93A5468B: shackle from £14.81 each
- Y4020: bush (rear spring shackle) from £8.91 each
- Y4615A: driving pinion bearing assy from £136.66 each
- Y4607: drive shaft pin from £7.19 each
- Y1225: Rear wheel bearing from £50.56 each
- 7W7052: seal (main drive gear) from £9.94 each
- Y7090: Universal joint from £101.75 each
- Y1225RK: Rear axle wheel bearing repair kit from £192.25 axle set
- E83W4234B: halfshaft E83W from £174.54 each
- E83W4235B: halfshaft E83W from £116.40 each
- YE4645A: Bearing for drive shaft assembly from £64.28 each
- Y5715/8R: rear spring shackle assembly from £72.45 each
- E83W5560B: rear spring from £174.54 each
- E83W4209: crown wheel and pinion set from £254.50 each
- E83W4010/1asy: E83W rear axle from £1192.39 each
- B1175: rear hub grease seal from £10.55 each
- E71A1180: Rear hub seal snap ring (B1180) from £4.86 each
- YE4209H: crown wheel & pinion gear 4.4 to 1 ratio from £472.64 each
- YE4209GGU: crown wheel & pinion gear 4.7 to 1 ratio from £545.35 each
- 19403515: gasket differential housing from £2.30 each
- 19403519: gasket differential housing from £2.30 each
- B4012: Rear axle housing repair sleeve (E83W) from £56.34 each
- E93A4658A: Rubber encased needle roller bearing with felt channels from £61.88 each
- Y4515: gasket (universal joint housing cap) from £4.04 each
- Y21950: drive pinion nut from £6.43 each
- E81A4215: diff pinion gear from £51.24 each
- 184215B: diff pinion gear from £51.24 each
- E04A4650: locking ring from £6.92 each
- Y4637: thrust washer from £3.34 each
- 100E4615: Driving pinion bearing from £125.39 each
Applies to Vehicles
- Ford Model 19, Y (1932 to 1937)
- Ford Model 20, C & CX (1934 to 1937)
- Ford Eight, Model 7Y (1937 to 1939)
- Ford Ten, Model 7W (1937 to 1939)
- Ford Anglia, Model E04A (1939 to 1948)
- Ford Prefect, Model E93A (1939 to 1948)
- Ford Anglia, Model E494A (1949 to 1953)
- Ford Prefect, Model E493A (1949 to 1953)
- Ford Popular, Model 103E/104E (1953 to 1959)
- Ford 5 cwt. Van, Model E04C (1940 to 1948)
- Ford 5 cwt. Van, Model E494C (1949 to 1954)
- Ford 10 cwt. Van, Model E83W (1938 to 1957)
- Ford Estate Car, Model E83W (1949 to 1957)
- Ford Pickup, Model E83W (1950 to 1957)
