135: wiring diagram 100E Anglia after Febuary 1955 (exclude DeLuxe)

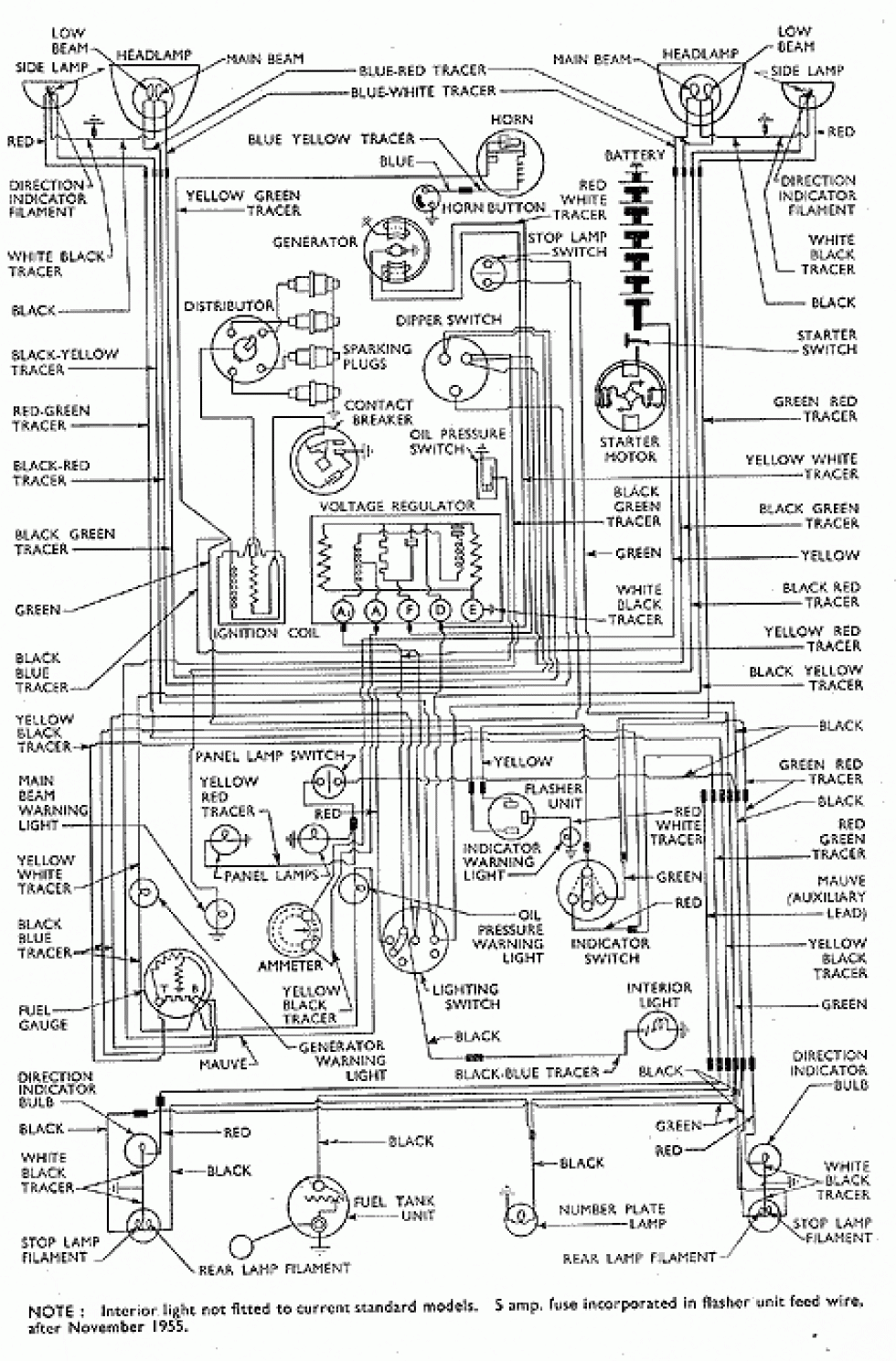

wiring diagram 100E Anglia after Febuary 1955 (exclude De-Luxe)

(click to open full sized in new window)

For identification purposes only, reproduced from Ford Motor Company parts list book.

Parts Shown

Applies to Vehicles

Ford 100E Anglia & Popular (1953 to 1962)
