141: wiring diagram Thames 300E van after Febuary 1955

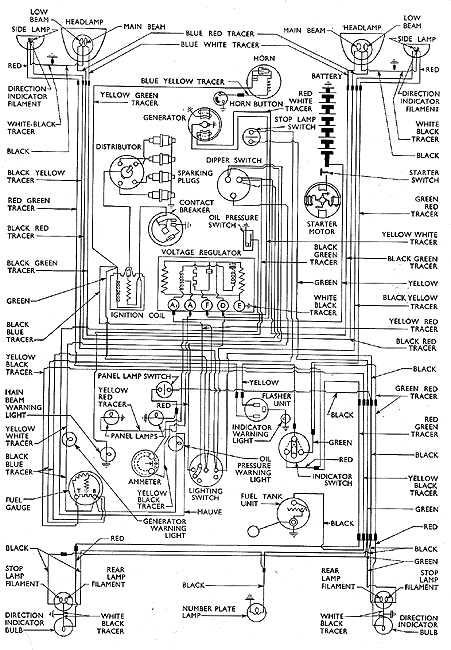

wiring diagram Thames 300E van after Febuary 1955

(click to open full sized in new window)

For identification purposes only, reproduced from Ford Motor Company parts list book.

Parts Shown

Applies to Vehicles

Ford 300E 5cwt & 7cwt Van (1954 to 1961)
