144: wiring diagram E83W from 1945

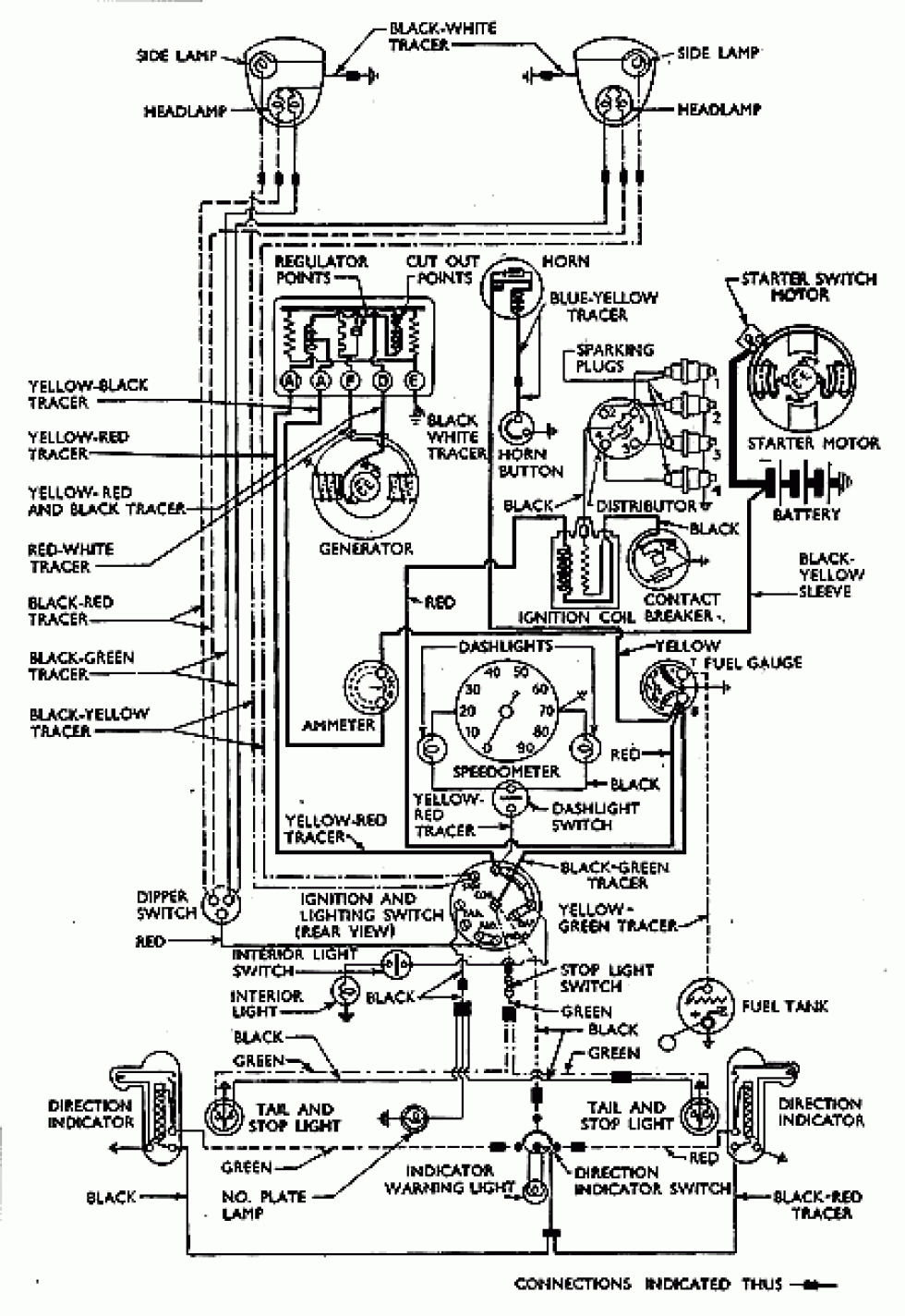

wiring diagram E83W from 1945

(click to open full sized in new window)

For identification purposes only, reproduced from Ford Motor Company parts list book.

Parts Shown

Applies to Vehicles

Ford 10 cwt. Van, Model E83W (1938 to 1957)
Ford Estate Car, Model E83W (1949 to 1957)
Ford Pickup, Model E83W (1950 to 1957)
