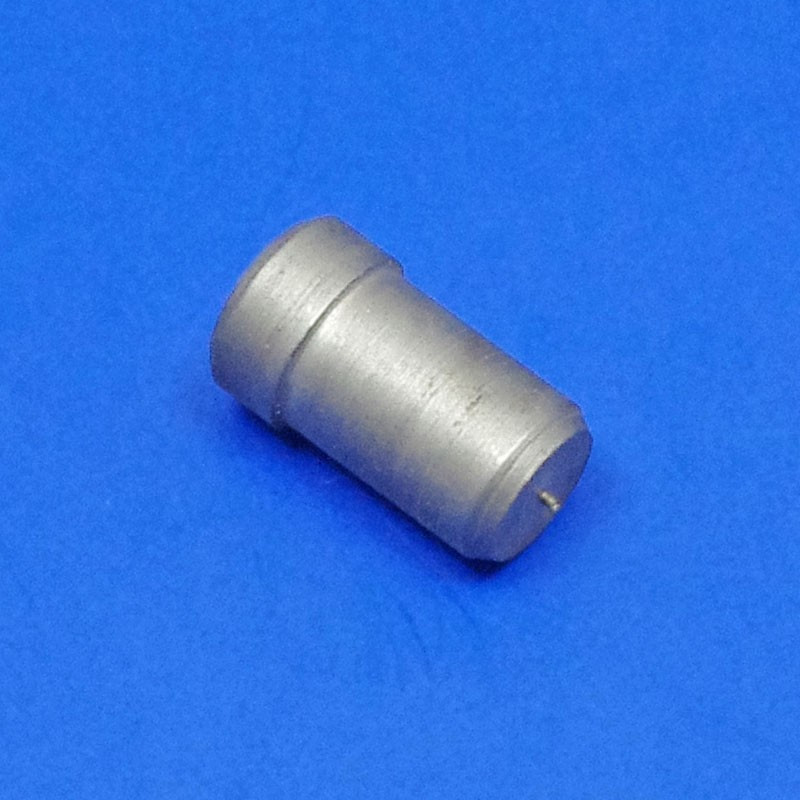

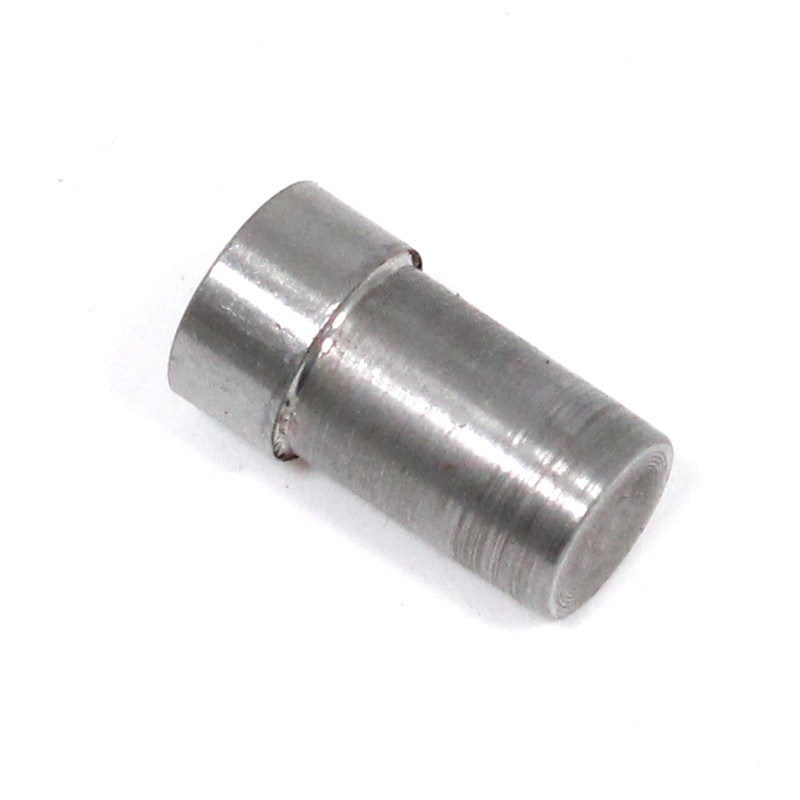

109E-6253 - Camshaft sprocket dowel

Camshaft to camshaft sprocket dowel, dimensions 15mm overall length (4mm long major diameter, 11mm minor diameter), 6.4mm minor diameter and 8mm diameter shoulder.
Fits 109E-6250 camshaft for pre crossflow and crossflow engine applications, listed under the cam shaft part number (including 105E, 109E, 113E). Use with two bolts part number 20326-S7 and Camshaft Sprocket 105E-6256-B if required
