622E-10505-B - Voltage regulator/cut out - RB340 22AMP 12VOLT NCB130

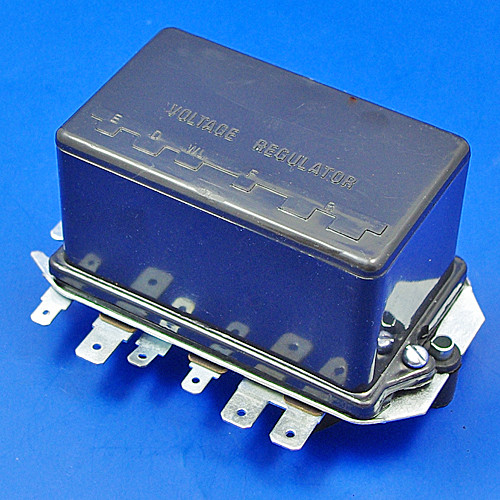

Lucas RB340 type. Three bobbin.12V 22A Dynamo Voltage Regulator with Lucar terminals. Equivalent to Lucas part number NCB130, NCB132 (the uprated version of 11A NCB134/NCB136). E - earth, D - dynamo D, WL goes - ignition warning light F - dynamo F, B - battery/ electrical accessories

used on later 105E models

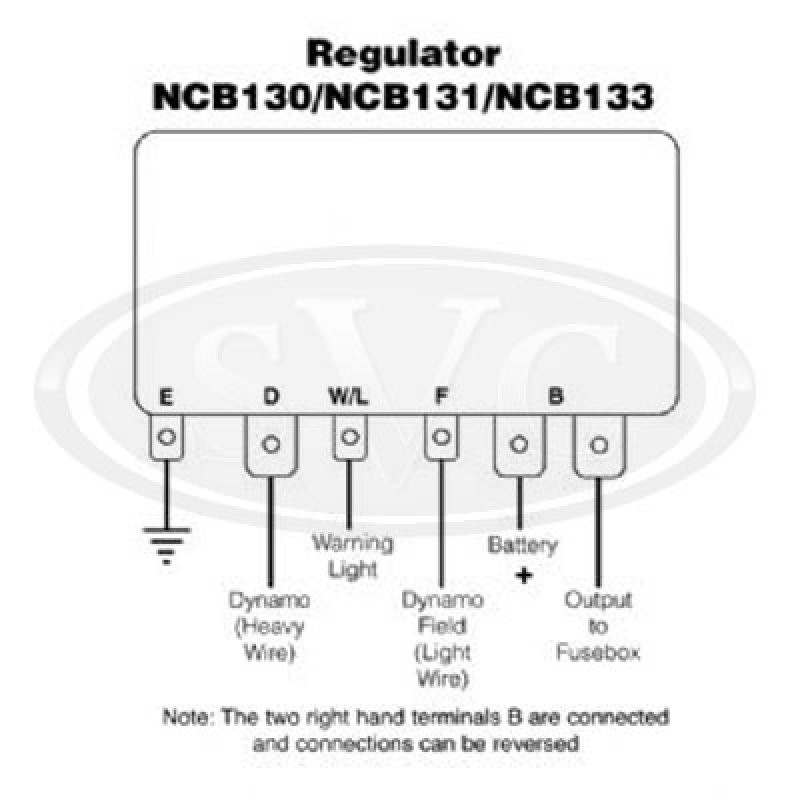

Diagrams including Voltage regulator/cut out - RB340 22AMP 12VOLT NCB130
