Name: Rear spring shackle stud (E83W)
SKU: E62A-5713-B
Price: 20.12 GBP
Availability: InStock

Home
>
Categories
>
Springs
>
Rear spring shackle stud (E83W)

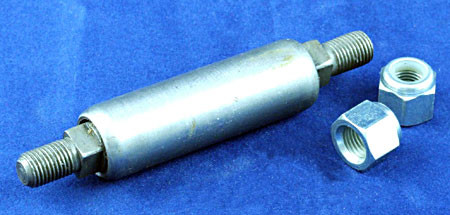

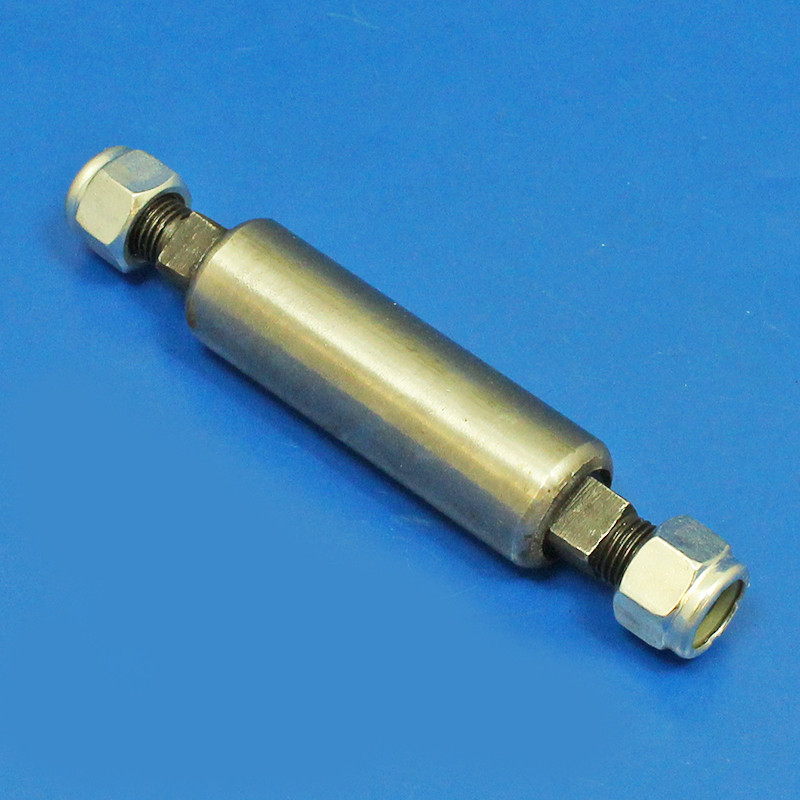

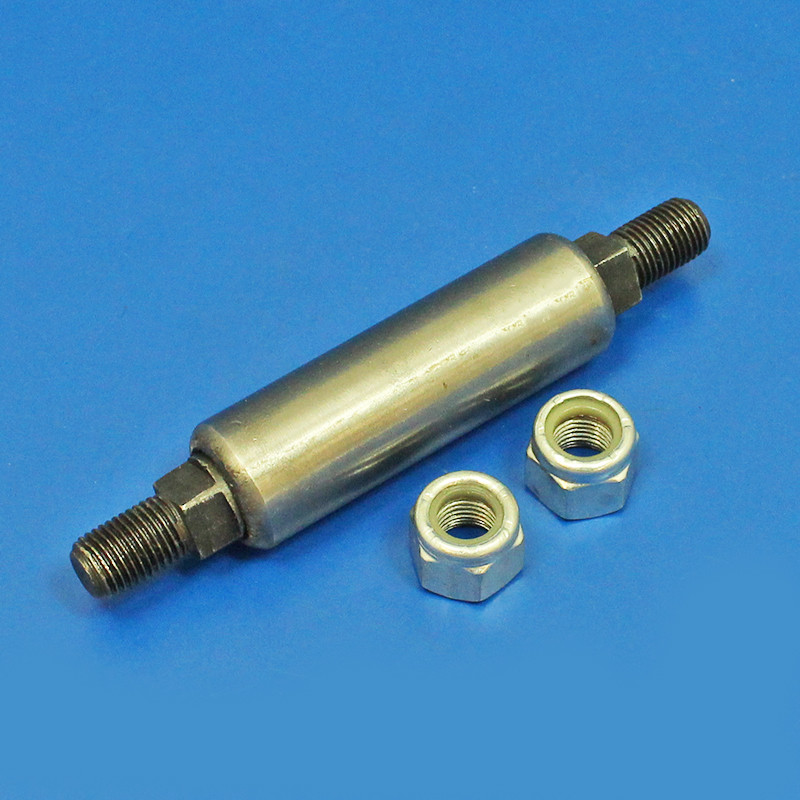

Rear spring metalastic shackle stud assy.

Metalastic centre bush bonded with two 3/8"UNF studs with 9.5mm squares

Overall length 102mm, Centre bush 62mm long x 19.1mm diameter, with 20mm long studs(14mm threaded)

Used on E83W models 1938-1957

click to view larger image

Applies to Vehicles

Ford - 10 cwt. Van, Model E83W (1938 to 1957)
Ford - Estate Car, Model E83W (1949 to 1957)
Ford - Pick-up, Model E83W (1950 to 1957)
