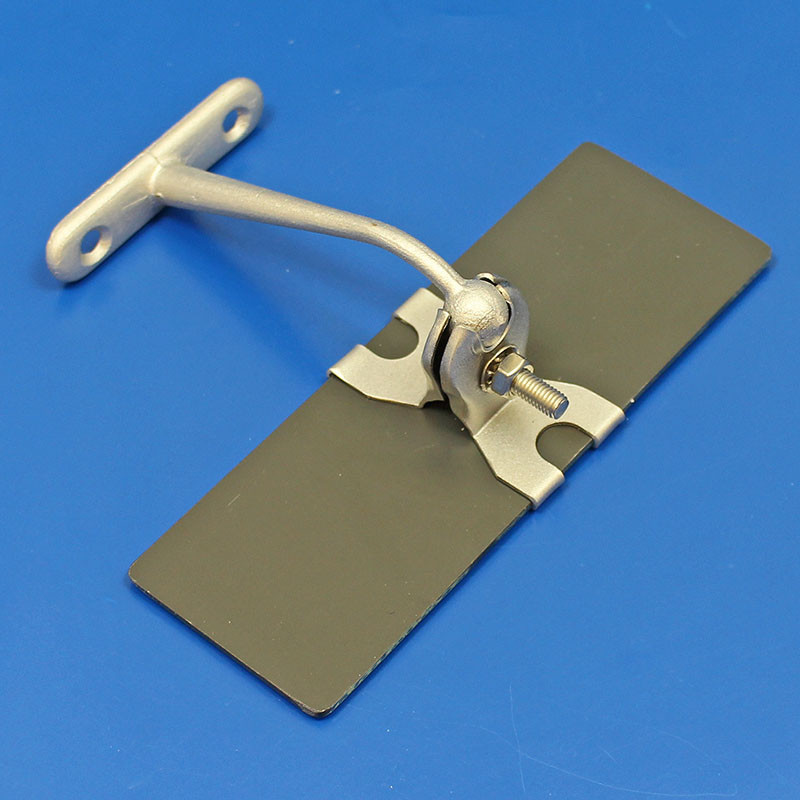

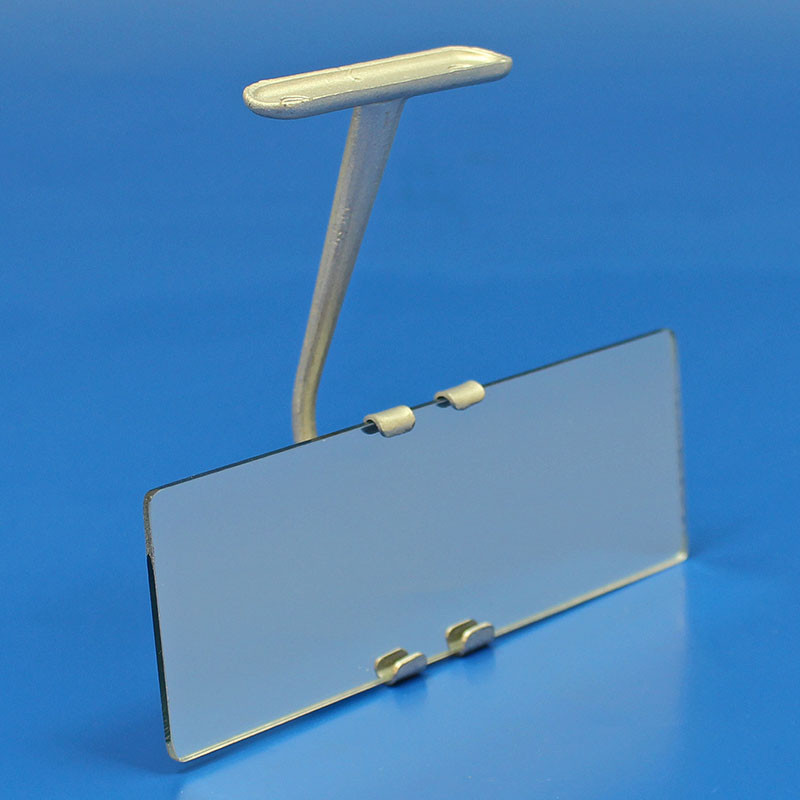

100E-17700-C - Interior mirror

As original pattern, smoke grey paint finish, flat glass, for 100E and 103E. Plain flat glass with ball clamp fitting to stem. Hand finished glass size approx 132mm x 46mm. Overall height 107mm. Lost wax cast bronze base, size 59mm x 16mm with two screw holes 40mm centre to centre.
