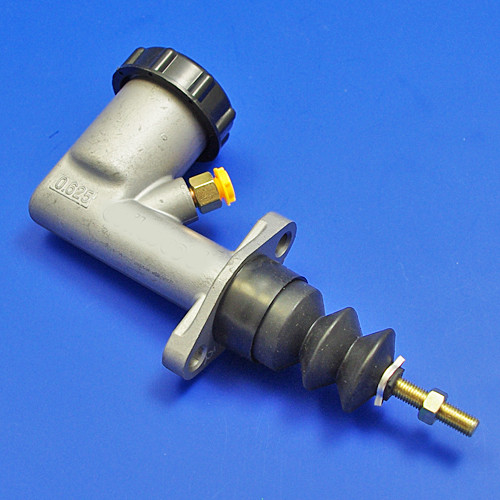

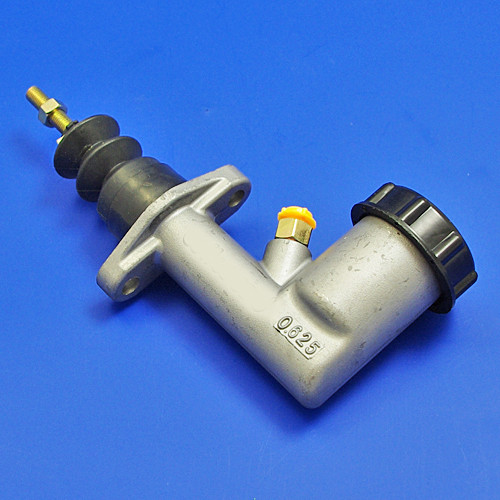

100E-2140 - Master cylinder

Application - brake and clutch, note the connecting rod will require changing for the original on vehicle, depending on application.

5/8" bore -  Integral reservoir mount

Hole mountings centre to centre = 57.1mm (2.25")

3/8" UNF thread for hydraulic hose

5/16" UNF piston rod thread
