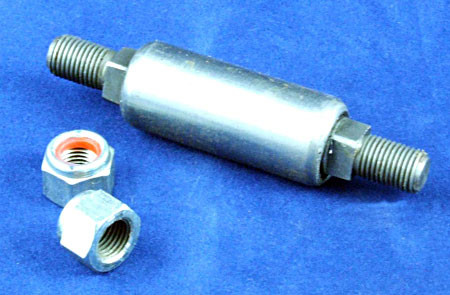

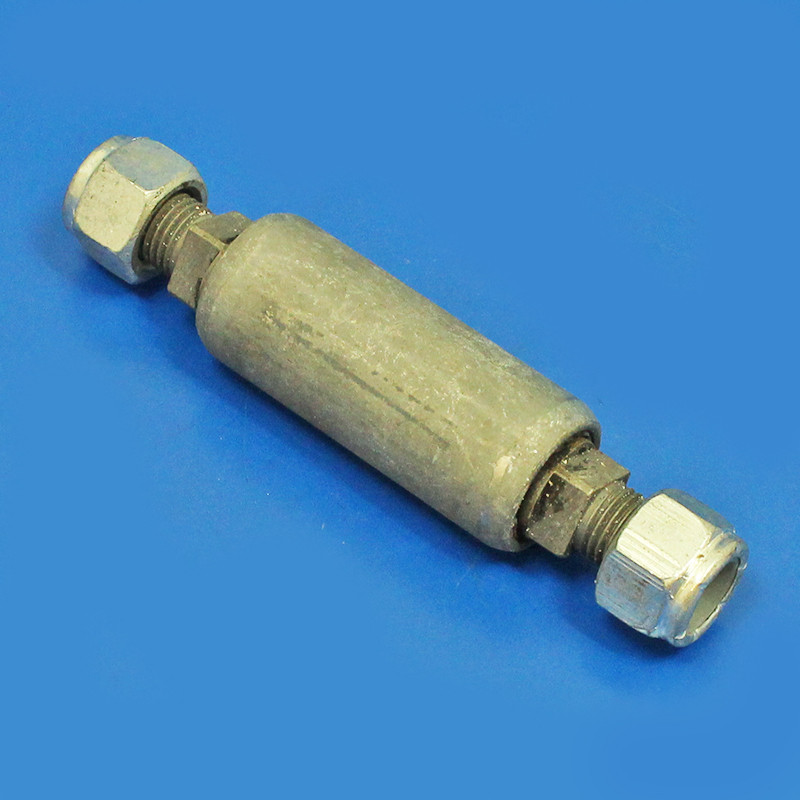

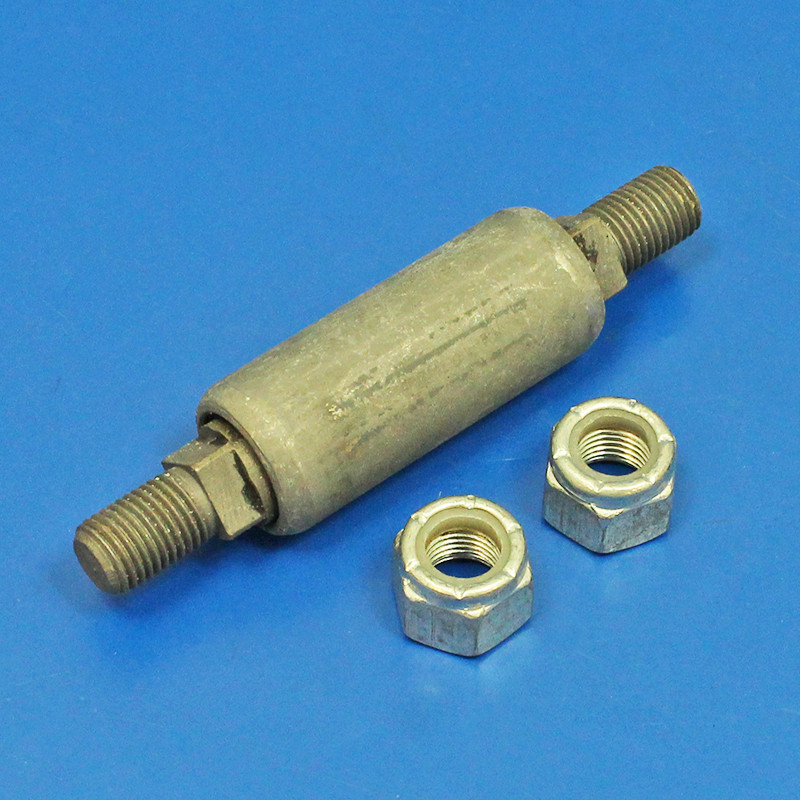

40-5463-B - Spring shackle stud assy (3/4")
Spring metalastic shackle stud assy. For springs with 3/4" bush.
Metalastic centre bush bonded with two 3/8"UNF studs with 9.5mm squares
Overall length 85mm, Centre bush 45.5mm long x 19mm diameter, with 20mm long studs(14mm threaded)
Fits - Rear springs on cars 1937-1946, Front springs E83W models 1938-1957.
Diagrams including Spring shackle stud assy (3/4")
Applies to Vehicles
Ford - Eight, Model 7Y (1937 to 1939)
Ford - Ten, Model 7W (1937 to 1939)
Ford - Prefect, Model E93A (1939 to 1948)
Ford - 5 cwt. Van, Model E04C (1940 to 1948)
Ford - 5 cwt. Van, Model E494C (1949 to 1954)
Ford - 10 cwt. Van, Model E83W (1938 to 1957)
Ford - Estate Car, Model E83W (1949 to 1957)
Ford - Pick-up, Model E83W (1950 to 1957)
