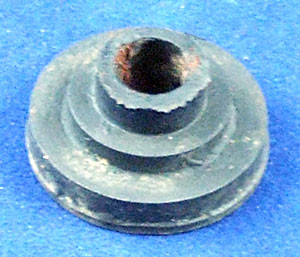

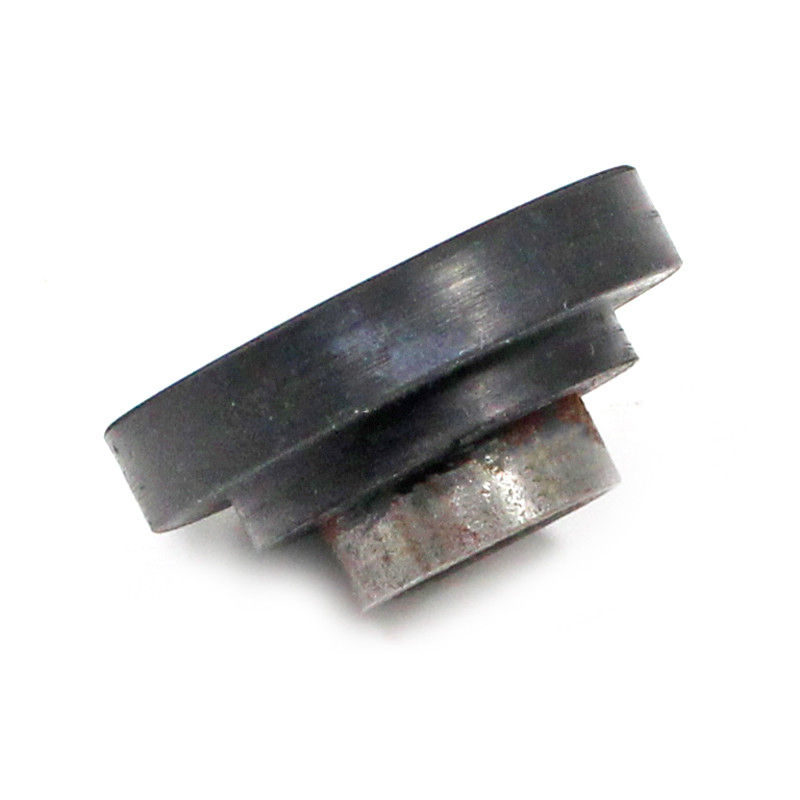

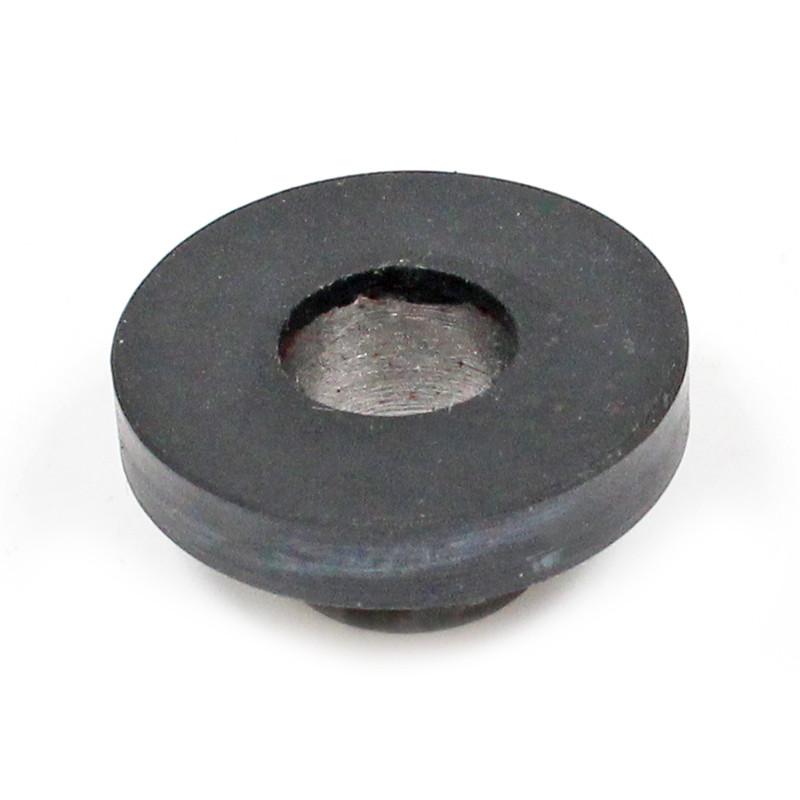

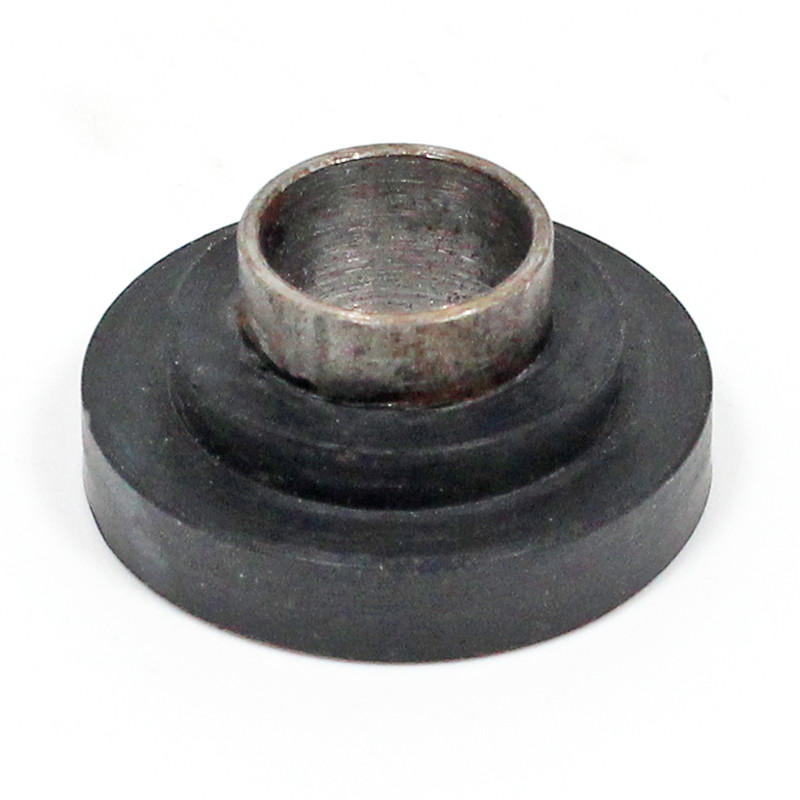

7W-5283 - Ford 8/10hp Exhaust tail pipe mounting grommet
Exhaust tail pipe grommet suitable for a range of early Ford 8hp and 10hp applications.
This grommet is used where the exhaust tail pipe passes through or mounts to the vehicle body / bracket area, helping to support and protect the exhaust installation.
Rubber washer 26mm o/d, stepped section 19mm o/d, steel sleeve 13mm o/d with 11mm bore, overall height 12.5mm.
Ford - Eight, Model 7Y (1937 to 1939)
Ford - Ten, Model 7W (1937 to 1939)
Ford - Anglia, Model E04A (1939 to 1948)
Ford - Prefect, Model E93A (1939 to 1948)
Ford - Anglia, Model E494A (1949 to 1953)
Ford - Prefect, Model E493A (1949 to 1953)
Ford - Popular, Model 103E/104E (1953 to 1959)
