AP-6050-E93A - Aquaplane cylinder head for E93A/10HP engine

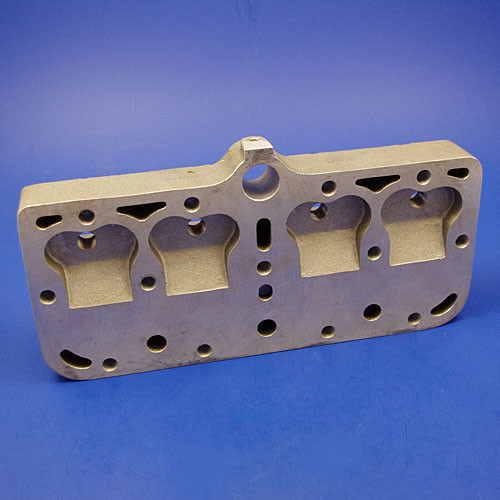

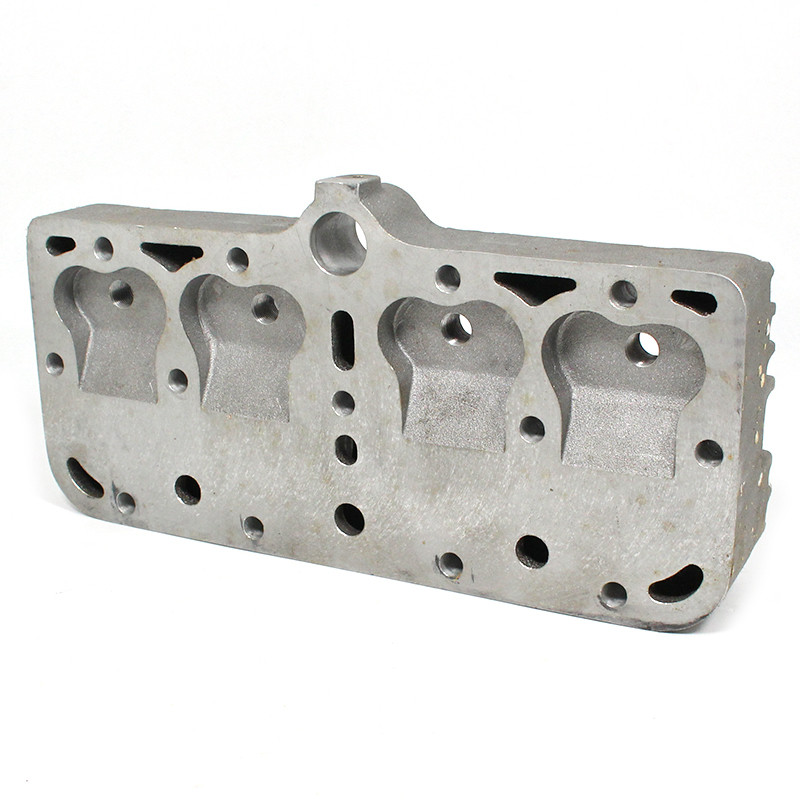

Aquaplane alloy cylinder superhead for 10hp model. Weight approx 3.5kg. Please note that the main face of these heads feature a milled finish but will require final skimming by the customer to their specification. Skimming can be arranged at an additional charge.

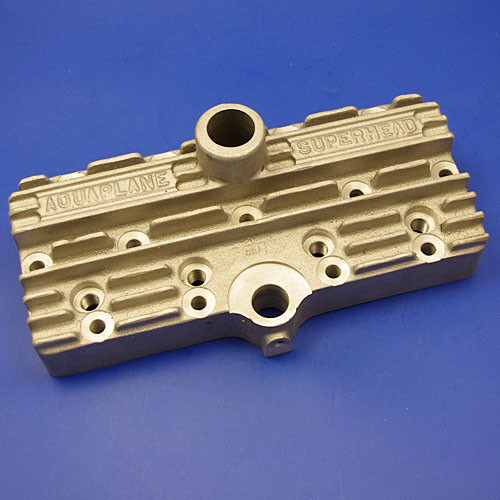

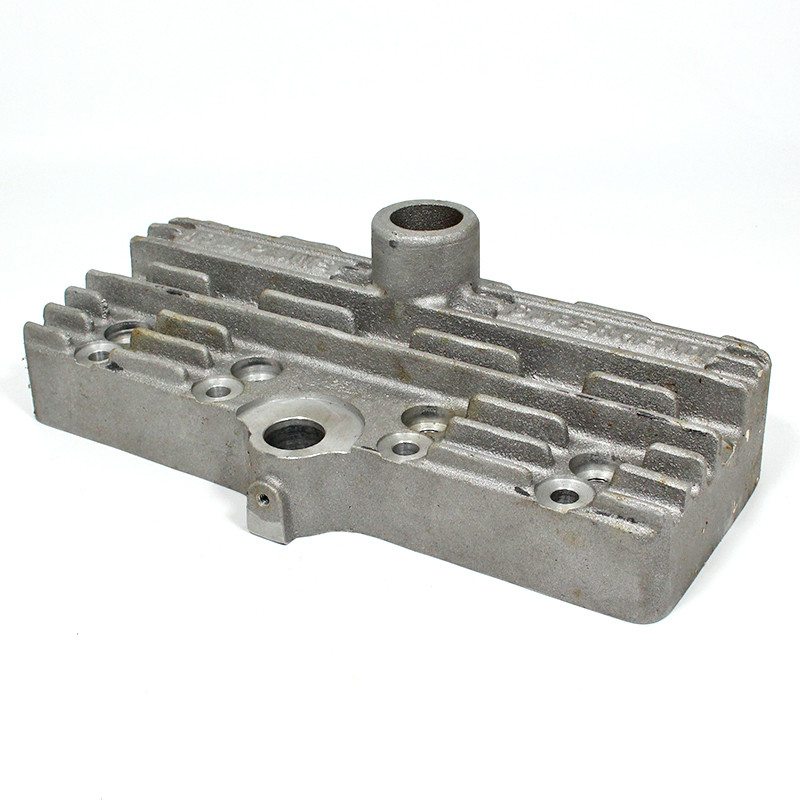

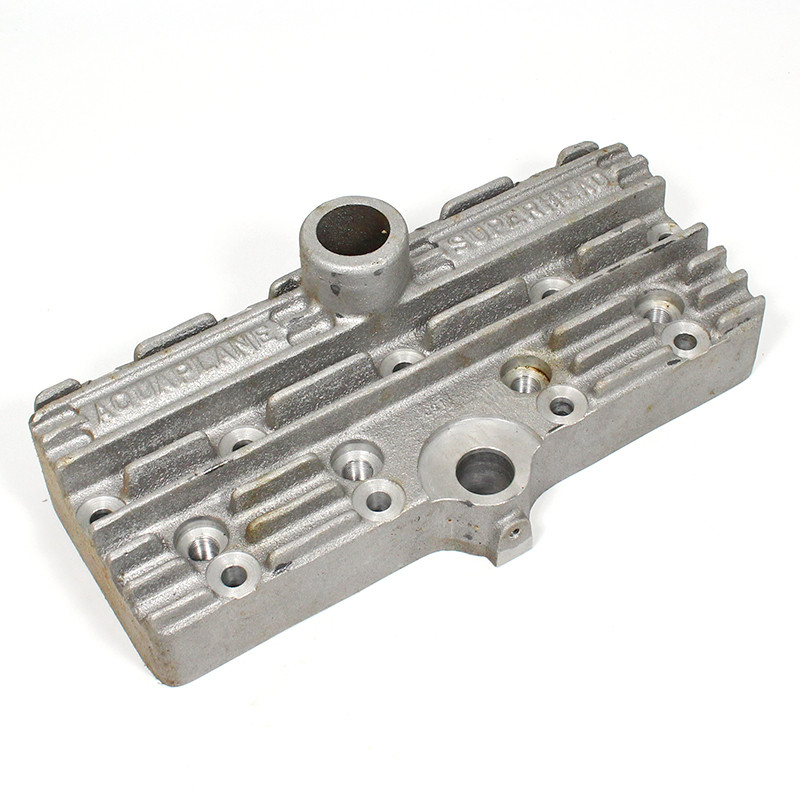

made to original pattern, finning to top. original Aquaplane part reference type 1700

Fitting instructions

Cylinder head torque settings

Torque data for tightening cylinder head nuts:
8hp and 10hp -30 to 35 lb./ft.- 40 to 47 Nm
100E - 65 to 70 lb./ft - 88 to 94 Nm
105E/123E - 65 to 70 lb./ft- 88 to 94 Nm
