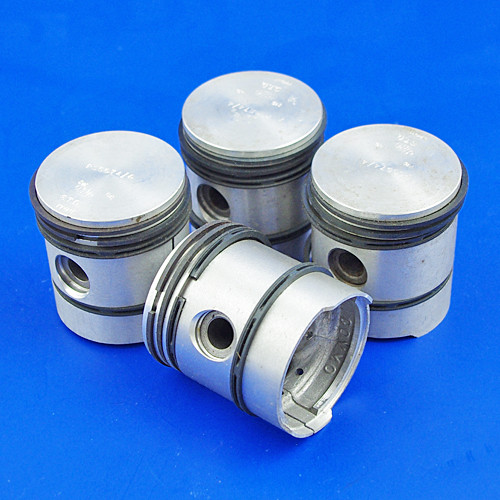

E494A-6102 - 8hp piston set (tall)

Set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.030" (+30), oversize 0.040" (+40) or oversize 0.060" (+60).
compression height from centre of pin to top approximately 32mm, gudgeon pin11/16" diameter (17.46mm). used in chain driven camshaft engine.

note standard bore of engine measures 2.23" (56.60mm), oversize measure 0.010" = 0.254mm, 0.020" = 0.508mm, 0.030" = 0.762mm, 0.040" = 1.016mm, 0.050" = 1.270mm, 0.060" = 1.524mm. please carry out machine work on engine parts when you have the replacement pieces actually to hand. we can not be held responsible for any variations on measurements which are for guidance purposes only.
