Crankshaft, Connecting Rod and Piston

Help and Instructions

  • Crankshaft, connecting rod and piston torque settings

    nut tightening torque data:
    8hp and 10hp engine main bearing cap nuts 45 to 50 lb./ft.- 60 to 67 Nm. big-end cap OEM nuts 30 lb./ft.- 40 Nm. big-end self locking nuts 20 to 23 lb./ft.- 27 to 31 Nm.
    100E engine main bearing bolt 55 to 60 ft./lb.- 74 to 81 Nm. big-end cap, OEM nut 20 to 25 lb./ft.- 27 to 33 Nm. big-end self locking nuts 3lb./ft.- 4 Nm.
    105E/123E engine main bearings 55 to 60 ft./lb.- 74 to 81 Nm. big-end cap 20 to 25 lb./ft.- 27 to 33 Nm.

    Please Note :- for our replacement con rods E93A-6200-REP and 100E-6200-REP with cap bolts, these should be tightened to 28 lbs ft with Loctite Threadlocker or equivalent applied.

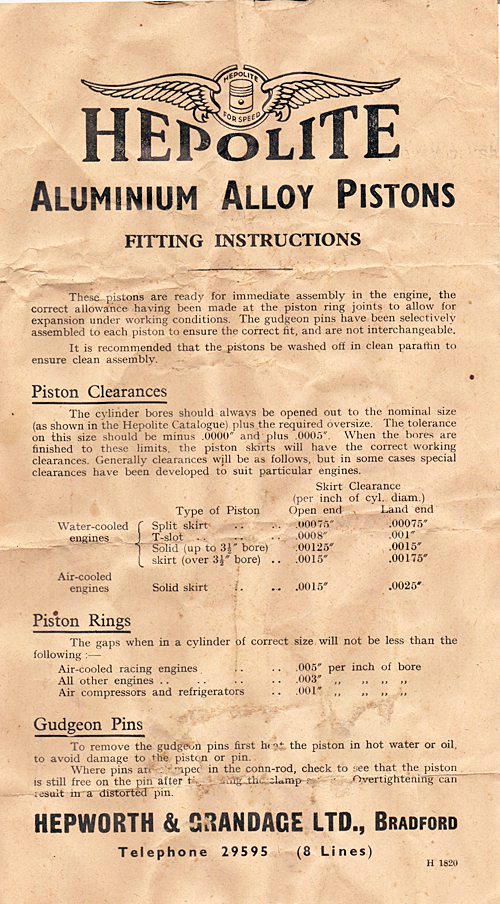

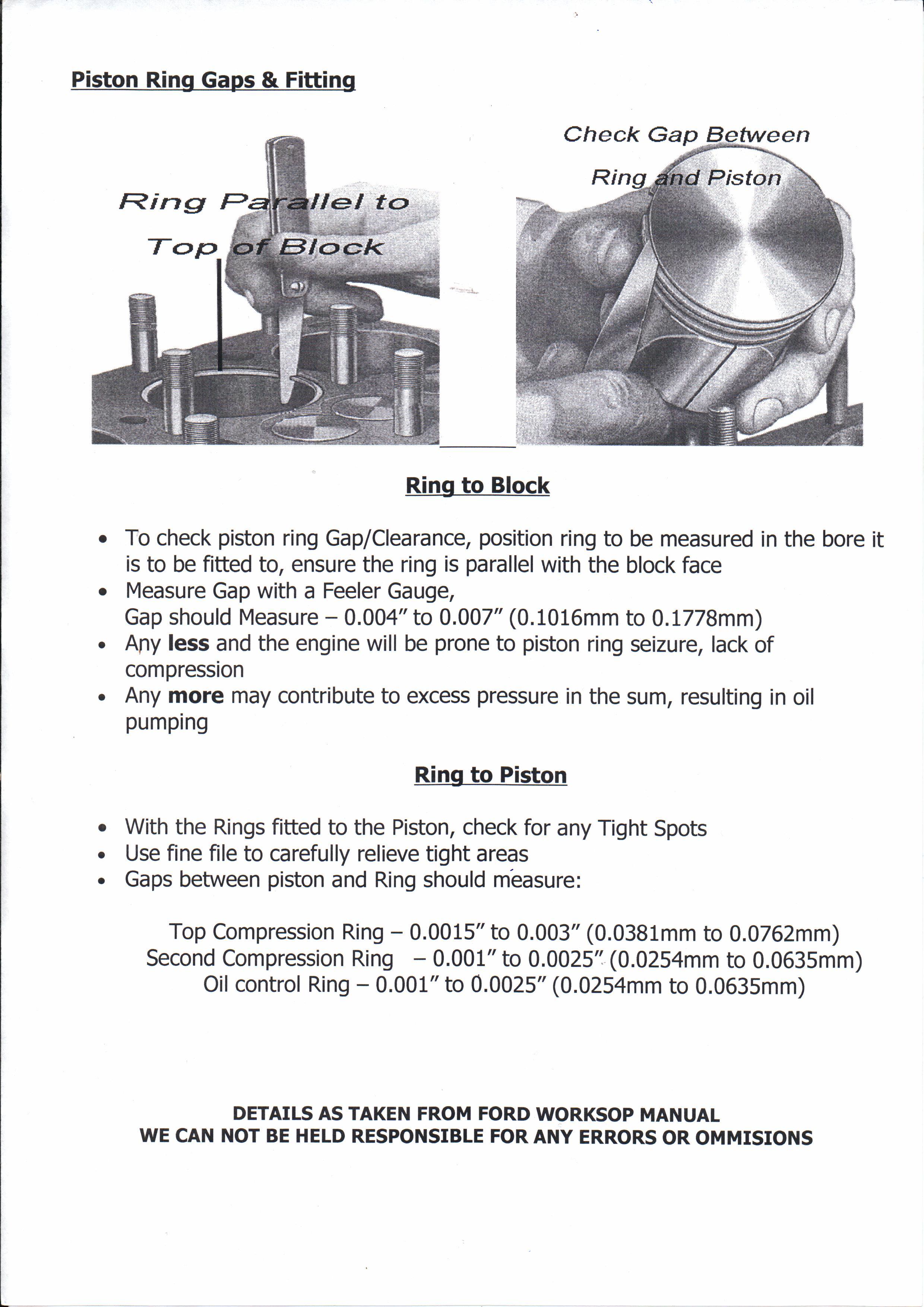

  • Piston Fitting & Clearances

Parts

Price from: £0.00 engine set (£0.00 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £174.75 set of 4 pieces (£209.70 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £185.65 set of 4 pieces (£222.78 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £180.20 set of 4 pieces (£216.24 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £180.20 set of 4 pieces (£216.24 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £180.20 set of 4 pieces (£216.24 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £174.75 set of 4 pieces (£209.70 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £185.65 set of 4 pieces (£222.78 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £161.20 engine set (£193.44 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.030" (+30), oversize 0.040" (+40) or oversize 0.060" (+60)....
Price from: £161.20 engine set (£193.44 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.030" (+30), oversize 0.040" (+40) or oversize 0.060" (+60)....
Price from: £161.20 engine set (£193.44 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.030" (+30), oversize 0.040" (+40) or oversize 0.060" (+60)....
Price from: £161.20 engine set (£193.44 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.030" (+30), oversize 0.040" (+40) or oversize 0.060" (+60)....
Price from: £161.20 engine set (£193.44 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.030" (+30), oversize 0.040" (+40) or oversize 0.060" (+60)....
Price from: £161.20 engine set (£193.44 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.030" (+30), oversize 0.040" (+40) or oversize 0.060" (+60)....
Price from: £59.65 engine set (£71.58 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds less 0.010", less 0.020", less 0.030", less 0.040", less 0.050"...
Price from: £59.65 engine set (£71.58 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds less 0.010", less 0.020", less 0.030", less 0.040", less 0.050"...
Price from: £59.65 engine set (£71.58 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds less 0.010", less 0.020", less 0.030", less 0.040", less 0.050"...
Price from: £59.65 engine set (£71.58 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds less 0.010", less 0.020", less 0.030", less 0.040", less 0.050"...
Price from: £59.65 engine set (£71.58 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds less 0.010", less 0.020", less 0.030", less 0.040", less 0.050"...
Price from: £59.65 engine set (£71.58 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds less 0.010", less 0.020", less 0.030", less 0.040", less 0.050"...
Price from: £59.65 engine set (£71.58 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds less 0.010", less 0.020", less 0.030", less 0.040", less 0.050"...
Price from: £67.25 each (£80.70 inc. VAT)
re-manufacted piston to crankshaft connecting rod, intergrated studs with conversion to take shell bearing, includes small end bush fitted, (you fit to your pin). specification cast in GGG50 and...
Price from: £0.00 engine set (£0.00 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £34.95 engine set (£41.94 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £45.90 engine set (£55.08 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £45.90 engine set (£55.08 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £45.90 engine set (£55.08 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £45.90 engine set (£55.08 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £38.25 engine set (£45.90 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £38.25 engine set (£45.90 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £83.00 each (£99.60 inc. VAT)
early pattern piston to crankshaft connecting rod with small 9/16" (14.29mm) diameter piston pin bush. machined to size specified. we have standard available from stock at reduced price.
Price from: £5.50 each (£6.60 inc. VAT)
CRANK SHAFT FRONT SEAL
Price from: £61.15 each (£73.38 inc. VAT)
replacement crankshaft pulley for all chain driven camshaft 8hp or 10hp engines
Price from: £61.15 each (£73.38 inc. VAT)
replacement crankshaft pulley for 100E engine, made from solid .
Price from: £61.15 each (£73.38 inc. VAT)
only fits to fibre gear driven camshaft engines - NOT the chain driven camshaft later type.
note the late r engine (maybe fitted ) uses other pulley
Price from: £12.65 each (£15.18 inc. VAT)
new manufacture aluminium rear bearing upper crankshaft oil seal, aluminium half moon housing that fits into the block and channels excess oil back into the sump.
Price from: £16.95 each (£20.34 inc. VAT)
aluminium rear bearing upper crankshaft oil seal, aluminium half moon housing that fits into the block and channels excess oil back into the sump.
Price from: £12.65 each (£15.18 inc. VAT)
new manufacture aluminium rear bearing upper crankshaft oil seal, aluminium half moon housing that fits into the block and channels excess oil back into the sump.
Price from: £16.95 each (£20.34 inc. VAT)
aluminium rear bearing lower crankshaft oil seal, aluminium half moon housing that fits into the sump and channels excess oil back into the sump.
Price from: £136.50 each (£163.80 inc. VAT)
exchange item, reground 3 main and 4 conrod journals,
Price from: £136.50 each (£163.80 inc. VAT)
exchange item, reground 3 main and 4 conrod journals (core charge on this unit £50.00)
Price from: £36.05 each (£43.26 inc. VAT)
new re-manufactured timing chain crankshaft sprocket, 20 teeth with timing mark.
Price from: £32.80 each (£39.36 inc. VAT)
13/16" wide
Price from: £0.00 engine set (£0.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £54.60 engine set (£65.52 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £54.60 engine set (£65.52 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £54.60 engine set (£65.52 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £54.60 engine set (£65.52 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £46.45 engine set (£55.74 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £41.00 engine set (£49.20 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £41.00 engine set (£49.20 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £76.45 engine set (£91.74 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £71.00 each (£85.20 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £67.60 each (£81.12 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £67.60 engine set (£81.12 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £67.60 Each (£81.12 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £67.60 each (£81.12 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £62.40 each (£74.88 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £57.20 each (£68.64 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £57.20 each (£68.64 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £71.00 each (£85.20 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040", less...
Price from: £1.60 each (£1.92 inc. VAT)
end clip to retain standard piston pin into piston end.
Price from: £4.55 each (£5.46 inc. VAT)
for 8hp piston
Price from: £0.00 set of 4 pieces (£0.00 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in various over sizes.
Price from: £205.40 set of 4 pieces (£246.48 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in various over sizes.

Price from: £205.40 set of 4 pieces (£246.48 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in various over sizes.

Price from: £202.80 set of 4 pieces (£243.36 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in various over sizes.

Price from: £202.80 set of 4 pieces (£243.36 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in various over sizes.

Price from: £205.40 set of 4 pieces (£246.48 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in various over sizes.

Price from: £205.40 set of 4 pieces (£246.48 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in various over sizes.

Price from: £205.40 set of 4 piece (£246.48 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in various over sizes.

Price from: £0.00 engine set (£0.00 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £212.95 engine set (£255.54 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £180.20 engine set (£216.24 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £180.20 engine set (£216.24 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £180.20 engine set (£216.24 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £180.20 engine set (£216.24 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £169.30 engine set (£203.16 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £180.20 engine set (£216.24 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40),...
Price from: £158.35 engine set (£190.02 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.050" (+50) or oversize 0.060" (+60)....
Price from: £158.35 engine set (£190.02 inc. VAT)
set of 4 pistons complete with rings, pins, clips etc. available in the following sizes. oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize...
Price from: £13.50 each (£16.20 inc. VAT)
dish washer crankshaft oil
Price from: £7.20 each (£8.64 inc. VAT)
little end bush. please note that this will require final ream and hone to suit piston pin once pressed into place, dimensions 22mm long, 18.7mm o/d, 17mm i/d.
Price from: £2.35 each (£2.82 inc. VAT)
37-39
Price from: £6.80 each (£8.16 inc. VAT)
timing pin tool which locates the timing indent on the timing chain spocket, screws into timing cover when not in use.
Price from: £27.45 each (£32.94 inc. VAT)
replacement cylinder liner sleeve for engine block.
Price from: £66.35 each (£79.62 inc. VAT)
piston to crankshaft connecting shaft with conversion to take shell bearing, includes small end bush fitted (you fit to your pin). specification cast in GGG50 and heat treated for strength and...
Price from: £13.70 Each (£16.44 inc. VAT)
good used starter dog bolt, screws through front pulley and accepts the starter crank handle. shallow nut used on model Y & C.
Price from: £13.70 Each (£16.44 inc. VAT)
good used starter dog bolt, screws through front pulley and accepts the starter crank handle. deep nut used on all 8/10hp models 1938-59.
Price from: £13.50 Each (£16.20 inc. VAT)
front crankshaft oil slinger dished washer, early Model Y 1932-1933
Price from: £7.20 Each (£8.64 inc. VAT)
front crankshaft oil slinger dished washer, Model C
Price from: £44.10 engine set (£52.92 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £44.10 engine set (£52.92 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £44.10 engine set (£52.92 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £44.10 engine set (£52.92 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £44.10 engine set (£52.92 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £44.10 engine set (£52.92 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £44.10 engine set (£52.92 inc. VAT)
replacement bearing shell set for piston to crank connecting shaft, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", less 0.040",...
Price from: £52.50 engine set (£63.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a...
Price from: £52.50 engine set (£63.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a...
Price from: £52.50 engine set (£63.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a...
Price from: £52.50 engine set (£63.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a...
Price from: £52.50 engine set (£63.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a...
Price from: £52.50 engine set (£63.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a...
Price from: £52.50 engine set (£63.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a...
Price from: £52.50 engine set (£63.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a...
Price from: £52.50 engine set (£63.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a...
Price from: £52.50 engine set (£63.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a...
Price from: £52.50 engine set (£63.00 inc. VAT)
replacement bearing shell set for crankshaft main bearings, specify size required. normal sizes suit crankshaft re-grinds of standard, less 0.010", less 0.020", less 0.030", also less 0.040" to a...
Price from: £9.00 each (£10.80 inc. VAT)
one each both top & bottom. specify thickness. standard thickness measures approx 2.35mm. stocked in standard, +0.005" and 0.010".
Price from: £9.85 each (£11.82 inc. VAT)
one each both top & bottom. specify thickness. standard thickness measures approx 2.35mm. stocked in standard, +0.005" and 0.010".

standard
Price from: £13.10 each (£15.72 inc. VAT)
one each both top & bottom. specify thickness. standard thickness measures approx 2.35mm. stocked in standard, +0.005" and 0.010".

0.005" oversize
Price from: £13.10 each (£15.72 inc. VAT)
one each both top & bottom. specify thickness. standard thickness measures approx 2.35mm. stocked in standard, +0.005" and 0.010".

0.010" oversize
Price from: £19.45 set of two piece (£23.34 inc. VAT)
crankshaft thrust washer (2 piece set - upper and lower) supplied in plus 0.0025" (plus 2.5), plus 0.0050" (plus 5.0), plus 0.0075" (plus 7.5) and plus 0.0100" (plus 10). (please note that 0.010"...
Price from: £19.45 set of two piece (£23.34 inc. VAT)
crankshaft thrust washer (2 piece set - upper and lower) supplied in plus 0.0025" (plus 2.5), plus 0.0050" (plus 5.0), plus 0.0075" (plus 7.5) and plus 0.0100" (plus 10). (please note that 0.010"...
Price from: £19.45 set of two piece (£23.34 inc. VAT)
crankshaft thrust washer (2 piece set - upper and lower) supplied in plus 0.0025" (plus 2.5), plus 0.0050" (plus 5.0), plus 0.0075" (plus 7.5) and plus 0.0100" (plus 10). (please note that 0.010"...
Price from: £19.45 set of two piece (£23.34 inc. VAT)
crankshaft thrust washer (2 piece set - upper and lower) supplied in plus 0.0025" (plus 2.5), plus 0.0050" (plus 5.0), plus 0.0075" (plus 7.5) and plus 0.0100" (plus 10). (please note that 0.010"...
Price from: £19.45 set of two piece (£23.34 inc. VAT)
crankshaft thrust washer (2 piece set - upper and lower) supplied in plus 0.0025" (plus 2.5), plus 0.0050" (plus 5.0), plus 0.0075" (plus 7.5) and plus 0.0100" (plus 10). (please note that 0.010"...
Price from: £19.45 set of two piece (£23.34 inc. VAT)
crankshaft thrust washer (2 piece set - upper and lower) supplied in plus 0.0025" (plus 2.5), plus 0.0050" (plus 5.0), plus 0.0075" (plus 7.5) and plus 0.0100" (plus 10). (please note that 0.010"...
Price from: £42.15 engine set (£50.58 inc. VAT)
set of piston rings. available in standard, oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.060" (+60). supplied as a 3 or 4 ring per piston engine set.
Price from: £42.15 engine set (£50.58 inc. VAT)
set of piston rings. available in standard, oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.060" (+60). supplied as a 3 or 4 ring per piston engine set.

Price from: £42.15 engine set (£50.58 inc. VAT)
set of piston rings. available in standard, oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.060" (+60). supplied as a 3 or 4 ring per piston engine set.

Price from: £44.25 engine set (£53.10 inc. VAT)
set of piston rings. available in standard, oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.060" (+60). supplied as a 3 or 4 ring per piston engine set.

Price from: £44.25 engine set (£53.10 inc. VAT)
set of piston rings. available in standard, oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.060" (+60). supplied as a 3 or 4 ring per piston engine set.

Price from: £44.25 engine set (£53.10 inc. VAT)
set of piston rings. available in standard, oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.060" (+60). supplied as a 3 or 4 ring per piston engine set.

Price from: £49.15 engine set (£58.98 inc. VAT)
set of piston rings. available in standard, oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.060" (+60). supplied as a 3 or 4 ring per piston engine set.

Price from: £49.15 engine set (£58.98 inc. VAT)
set of piston rings. available in standard, oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.060" (+60). supplied as a 3 or 4 ring per piston engine set.

Price from: £49.15 engine set (£58.98 inc. VAT)
set of piston rings. available in standard, oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.060" (+60). supplied as a 3 or 4 ring per piston engine set.

Price from: £49.15 engine set (£58.98 inc. VAT)
set of piston rings. available in standard, oversize 0.020" (+20), oversize 0.030" (+30), oversize 0.040" (+40), oversize 0.060" (+60). supplied as a 3 or 4 ring per piston engine set.

Price from: £37.45 engine set (£44.94 inc. VAT)
set of piston rings. available in sizes listed
Price from: £44.00 engine set (£52.80 inc. VAT)
set of piston rings. available in sizes listed

Standard size
Price from: £44.00 engine set (£52.80 inc. VAT)
set of piston rings. available in sizes listed

oversize 0.060"
Price from: £44.00 engine set (£52.80 inc. VAT)
set of piston rings. available in sizes listed

oversize 0.010"
Price from: £44.00 engine set (£52.80 inc. VAT)
set of piston rings. available in sizes listed

oversize 0.020"
Price from: £37.45 engine set (£44.94 inc. VAT)
set of piston rings. available in sizes listed

oversize 0.030"
Price from: £44.00 engine set (£52.80 inc. VAT)
set of piston rings. available in sizes listed

oversize 0.040"
Price from: £44.00 engine set (£52.80 inc. VAT)
set of piston rings. available in sizes listed

oversize 0.045"
Price from: £96.10 set of 4 (£115.32 inc. VAT)
replacement cylinder liner sleeve for engine block.
specifically sized for use once +90 thou oversize has been reached.
84.21mm outside
Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.

Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £56.20 engine set (£67.44 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £56.20 engine set (£67.44 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £56.20 engine set (£67.44 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £56.20 engine set (£67.44 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £56.20 engine set (£67.44 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £56.20 engine set (£67.44 inc. VAT)
set of piston rings. available in standard size, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50). supplied as a 3 or 4 ring per piston engine set.



Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.
Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £45.80 engine set (£54.96 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £64.50 engine set (£77.40 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £64.50 engine set (£77.40 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £64.50 engine set (£77.40 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £64.50 engine set (£77.40 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £64.50 engine set (£77.40 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £64.50 engine set (£77.40 inc. VAT)
set of piston rings. available in standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.040" (+40) , oversize 0.050" (+50) . supplied as a 3 or 4 ring per piston engine set.

Price from: £7.50 Each (£9.00 inc. VAT)
conrod little end bush. please note that this will require final ream and hone to suit piston pin once pressed into place, dimensions 26.5mm long, 22.4mm o/d, 20.4mm i/d.
Price from: £7.50 Each (£9.00 inc. VAT)
conrod little end bush. please note that this will require final ream and hone to suit piston pin once pressed into place, dimensions 26.5mm long, 22.4mm o/d, 20.4mm i/d.

conrod little end bush....
Price from: £145.00 set of 4 pieces (£174.00 inc. VAT)
set of 4 pistons with small piston pin, complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30),...
Price from: £145.00 set of 4 pieces (£174.00 inc. VAT)
set of 4 pistons with small piston pin, complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30),...
Price from: £145.00 set of 4 pieces (£174.00 inc. VAT)
set of 4 pistons with small piston pin, complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30),...
Price from: £145.00 set of 4 pieces (£174.00 inc. VAT)
set of 4 pistons with small piston pin, complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30),...
Price from: £145.00 set of 4 pieces (£174.00 inc. VAT)
set of 4 pistons with small piston pin, complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30),...
Price from: £145.00 set of 4 pieces (£174.00 inc. VAT)
set of 4 pistons with small piston pin, complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30),...
Price from: £145.00 set of 4 pieces (£174.00 inc. VAT)
set of 4 pistons with small piston pin, complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30),...
Price from: £150.80 set of 4 pieces (£180.96 inc. VAT)
set of 4 pistons with small piston pin, complete with rings, pins, clips etc. available in the following sizes. standard, oversize 0.010" (+10), oversize 0.020" (+20), oversize 0.030" (+30),...
Prices shown include VAT @ 20% where applicable
