RM769 - Rubber extrusion - Glazing strip

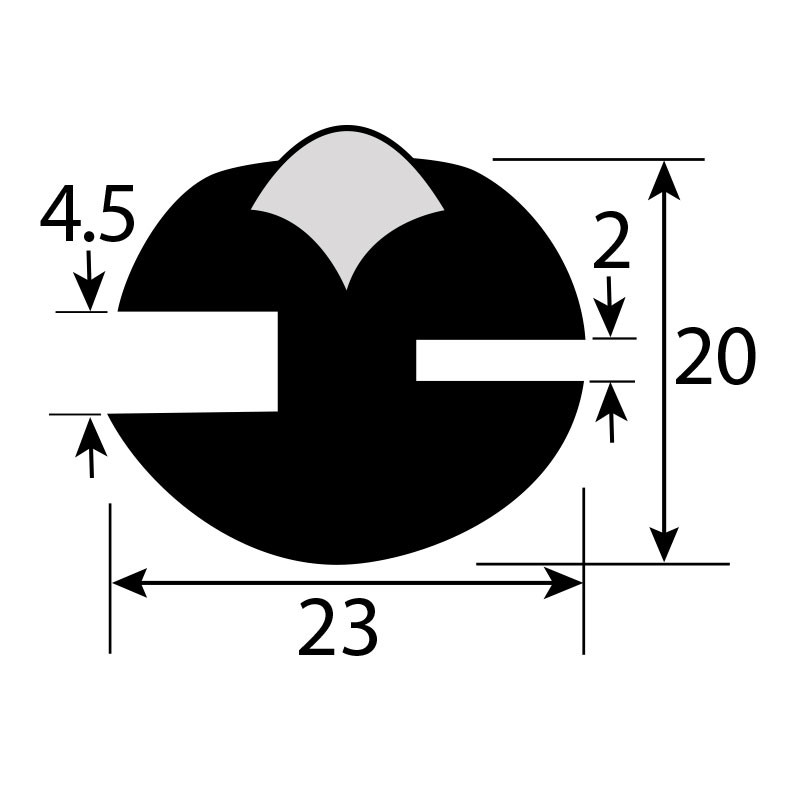

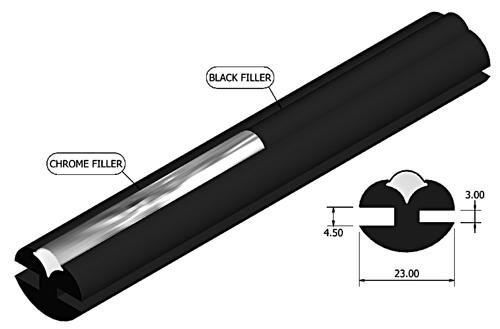

Black, as per illustration. 23mm wide, glass 4.75mm to 6mm and panel 3.1mm to 3.5mm. Clearance between glass and panel 8mm. Minimum bend radius 102mm. This section is supplied with a similar amount of filler strip as of section ordered. Please indicate whether you require black or chrome filler.

Product Images
click to view larger image
  • Rubber extrusion - Glazing strip
  • Rubber extrusion - Glazing strip
  • Rubber extrusion - Glazing strip
  • Rubber extrusion - Glazing strip
Ordering
    To order: enter quantity for the product variation/s you want & click the 'Add' button at the bottom right.
  • with black filler

    RM769-black - with black filler

    @ £10.23 / metre
    Subtotal:
  • with chrome filler

    RM769.chr - with chrome filler

    Quantity discounts available!
    • 5+ Save 10.00% (£9.69 / metre)
    • 10+ Save 17.50% (£8.89 / metre)
    • 30+ Save 20.00% (£8.62 / metre)
    @ £10.77 / metre
    Subtotal:
Total: £
Prices shown VAT @ 20%
