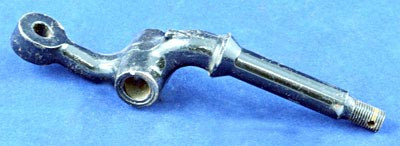

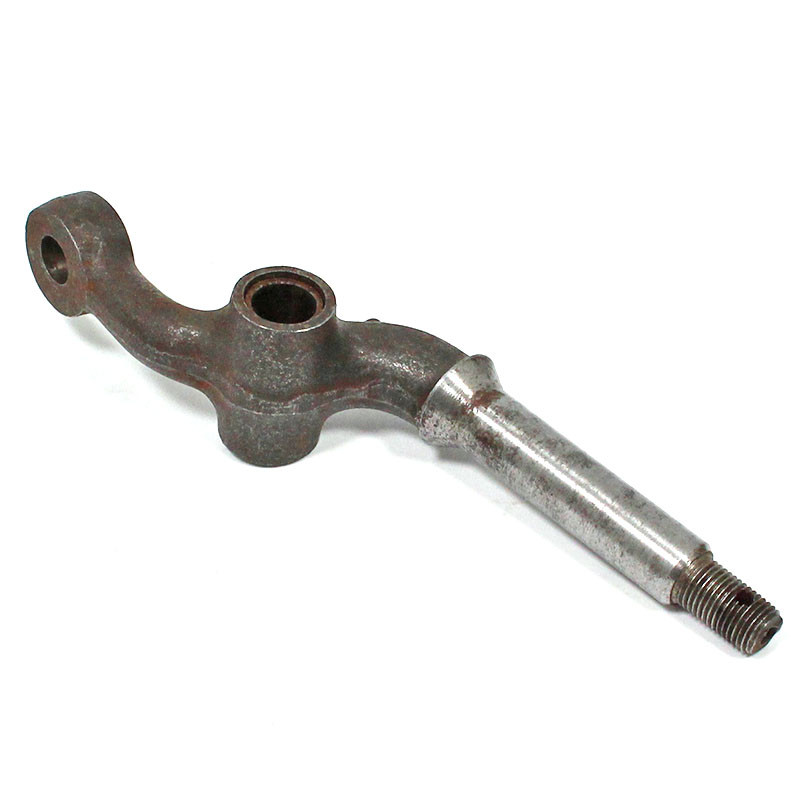

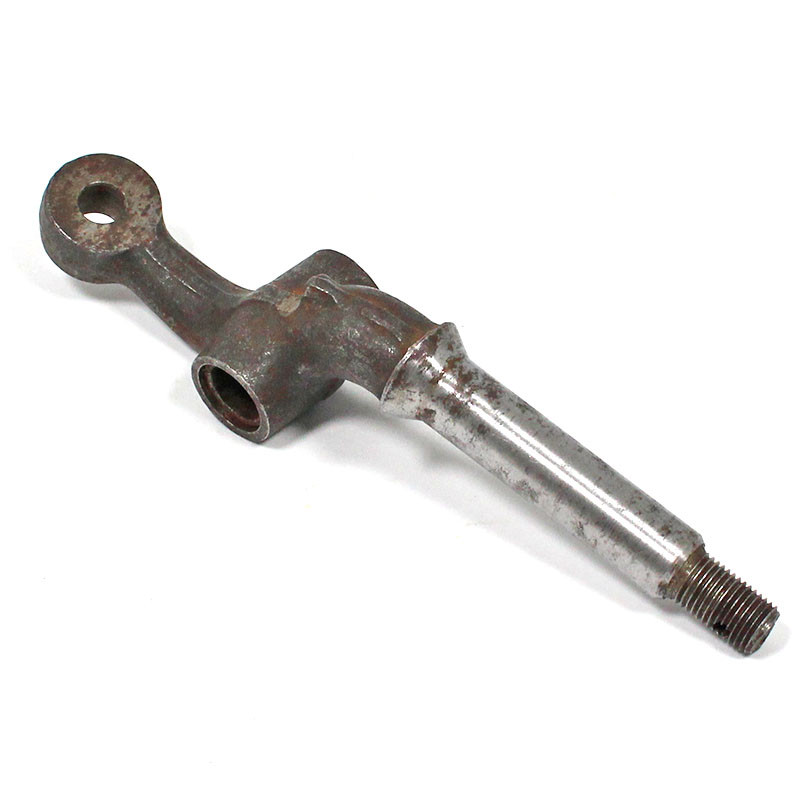

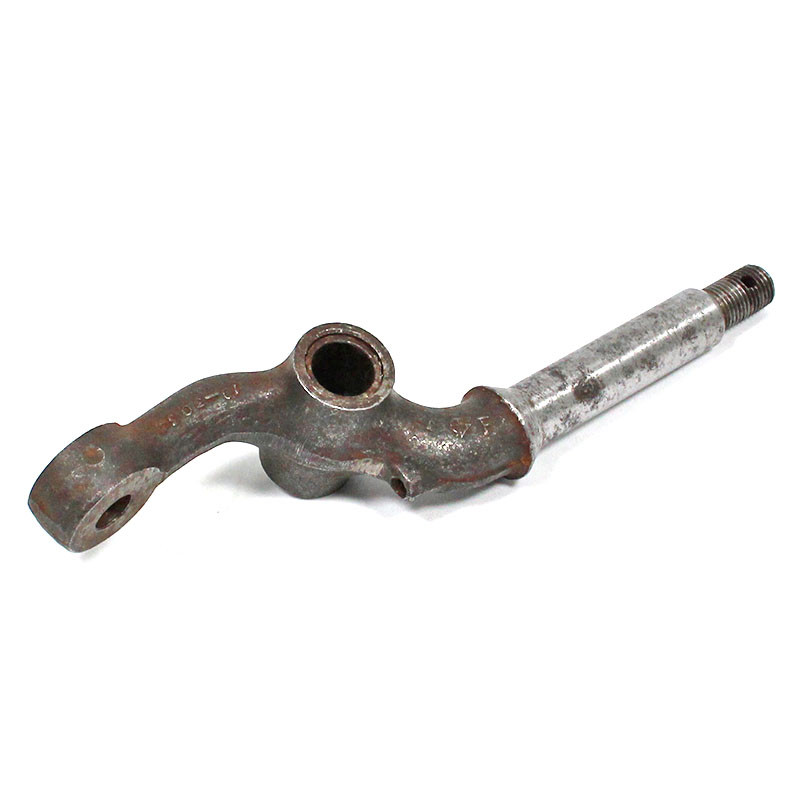

Y-3030 - Ford Model Y Perch bolt (swan necked)

Drop-forged radius rod supplied with a new spring bush already fitted. Swan necked perch bolt dimensions overall length 160mm, top shock absorber link hole 9mm tapering down  to 8mm daimeter, Centre bush 32mm long with 11.5mm i/d, Cross beam shat 12.5mm diameter with 3/8" UNF thread.

Forms part of the front suspension system, locating the front axle and controlling fore-and-aft movement while maintaining correct suspension geometry.

Ideal for replacing worn or damaged original radius rods during front axle overhaul.
