  7. Carburettor throttle shaft repair kit

YE-9582-BR - Carburettor throttle shaft repair kit

Standard sized spindle shaft with bushes, screws and nut.

To repair worn throttle shaft  in the 8/10hp carburettor.

Spindle  57mm long including thread (5.5mm long) x 7mm in diameter. Two bushes 1 x 14.5mm long x 8mm o/d & 1 x 8mm long x 8mm o/d.

Product Images
click to view larger image

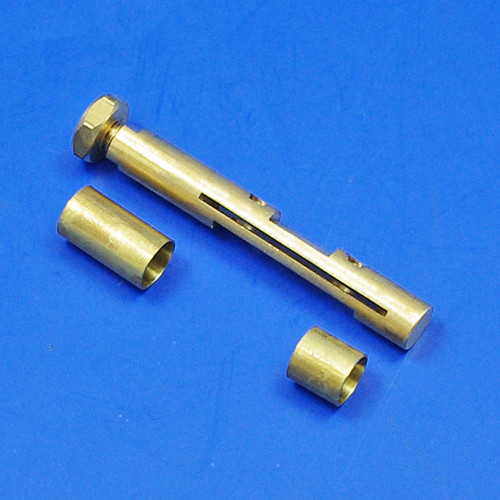

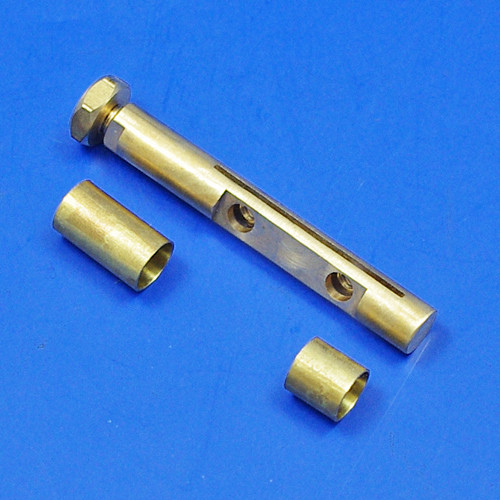

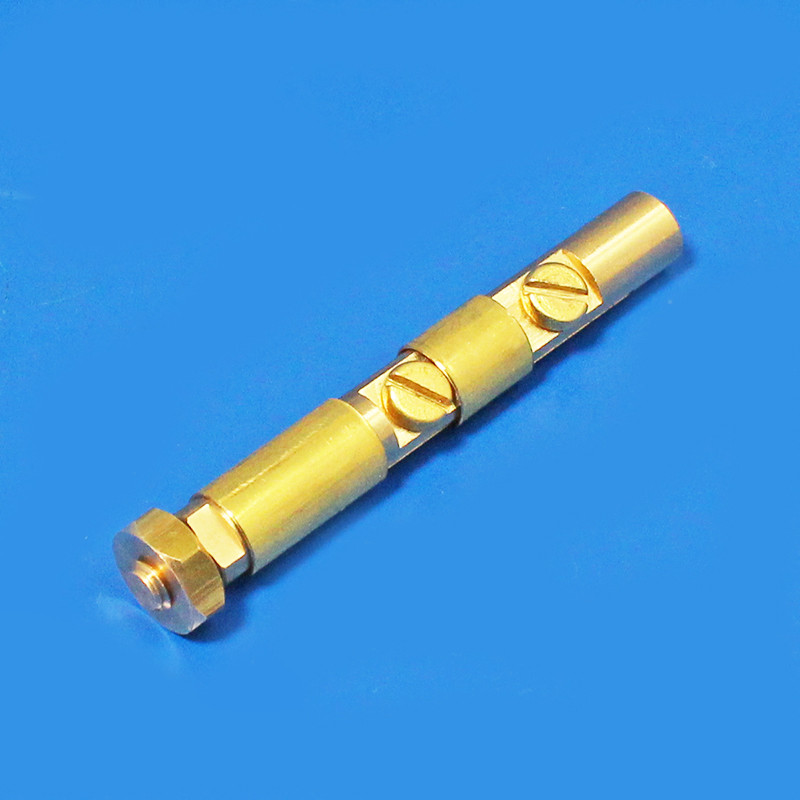

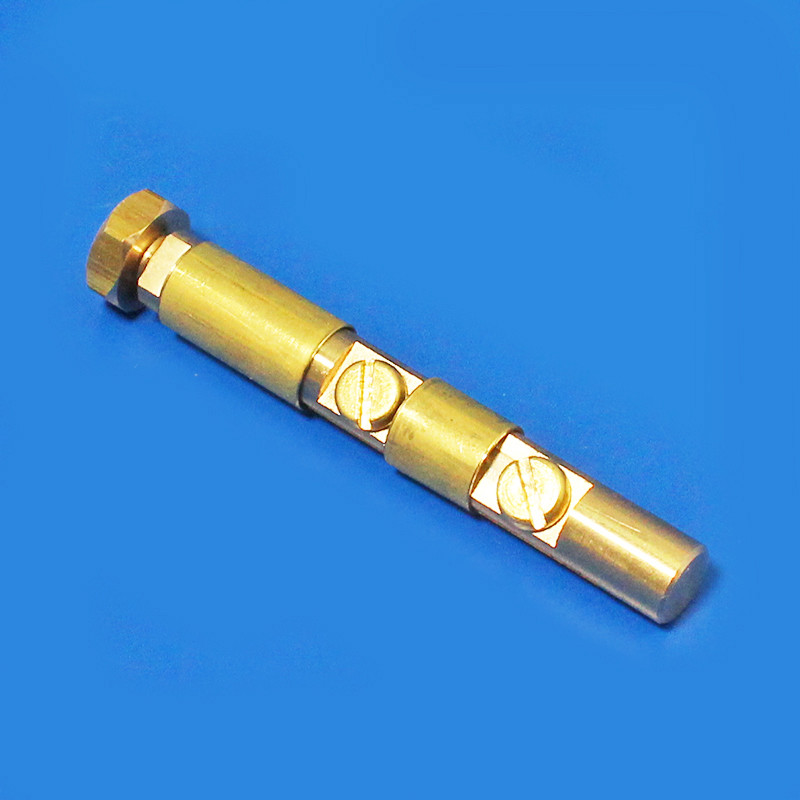

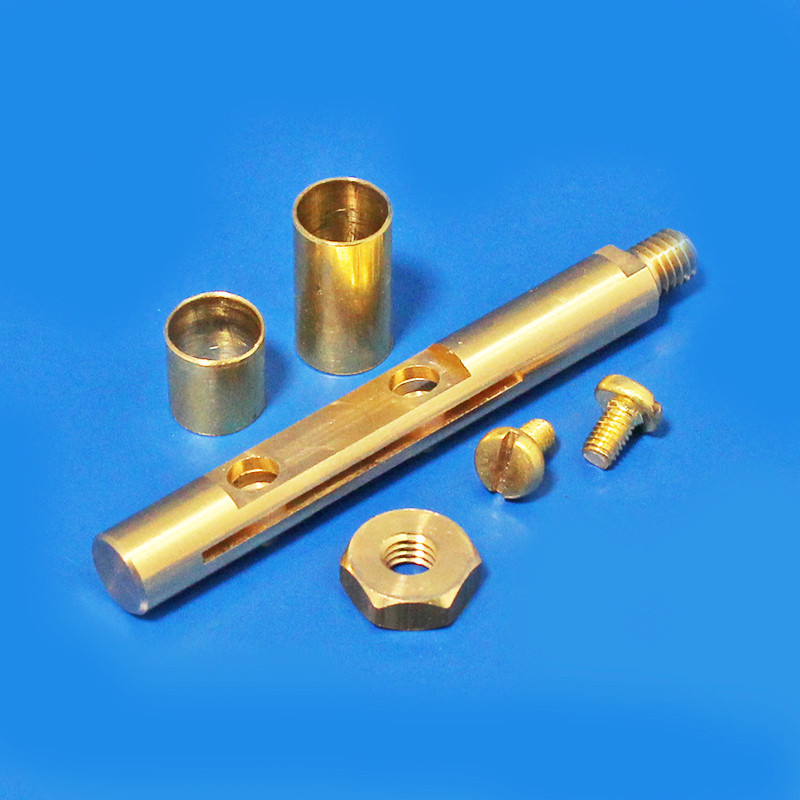

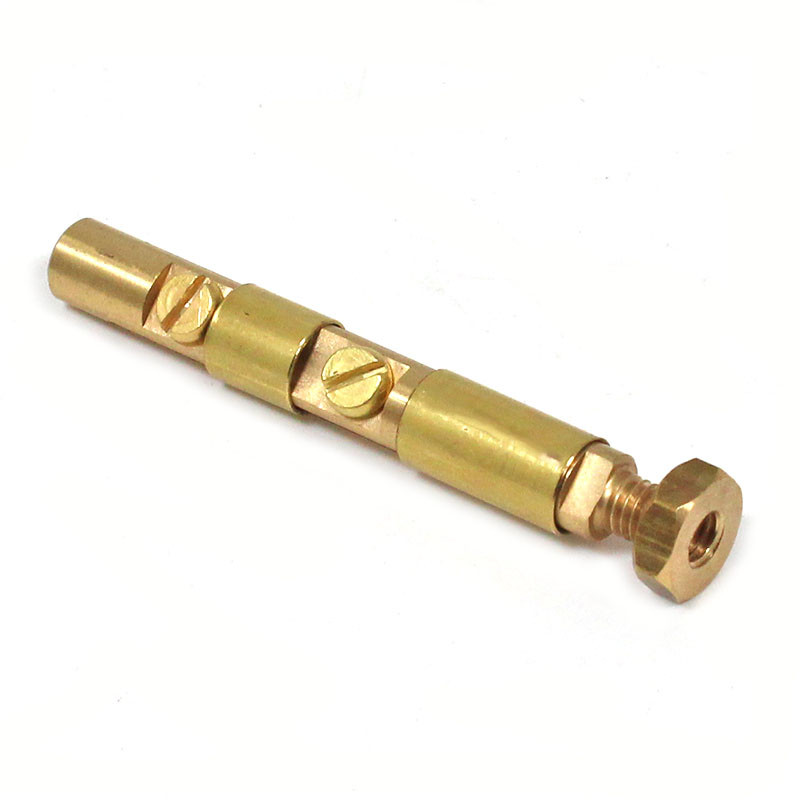

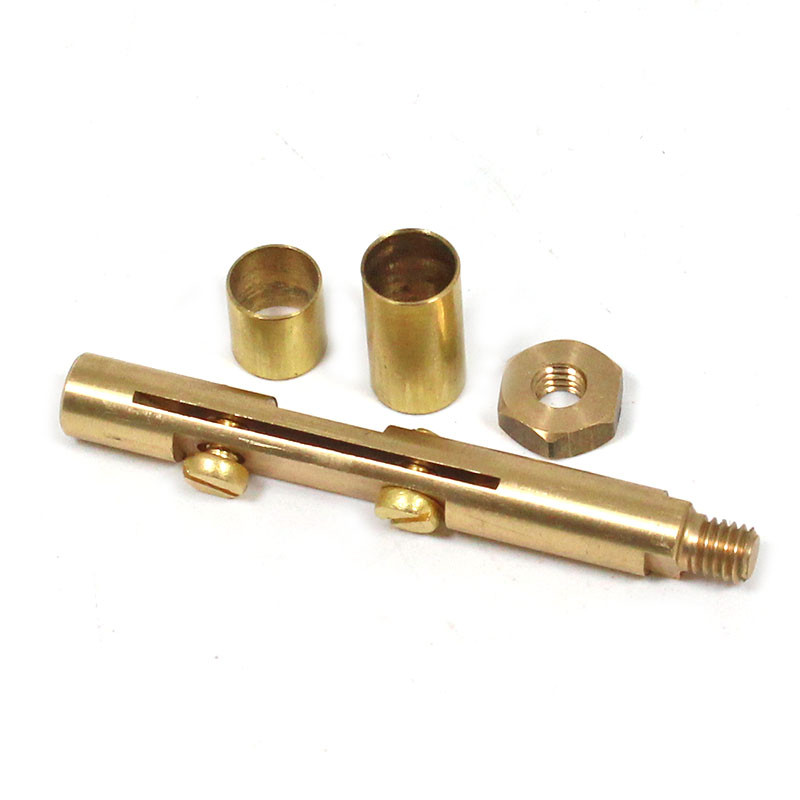

  • Carburettor throttle shaft repair kit
  • Carburettor throttle shaft repair kit
  • Carburettor throttle shaft repair kit

Diagrams including Carburettor throttle shaft repair kit

Ordering
    To order: enter quantity & click 'Add'.
  • @ £37.53 / each
    Subtotal:
Total: £
Prices shown VAT @ 20%
