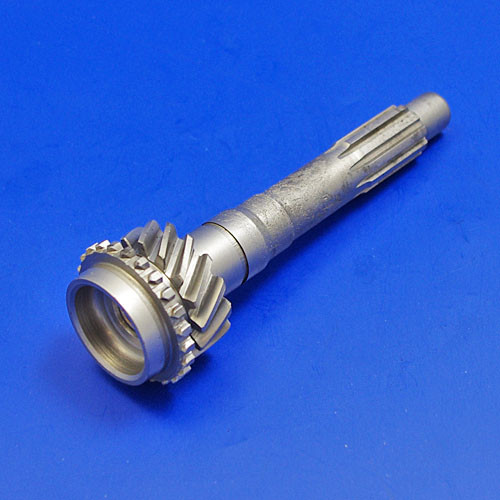

7Y-7015 - Main input drive gear shaft assy, 14 teeth
First motion input shaft main drive gear, 14 teeth.

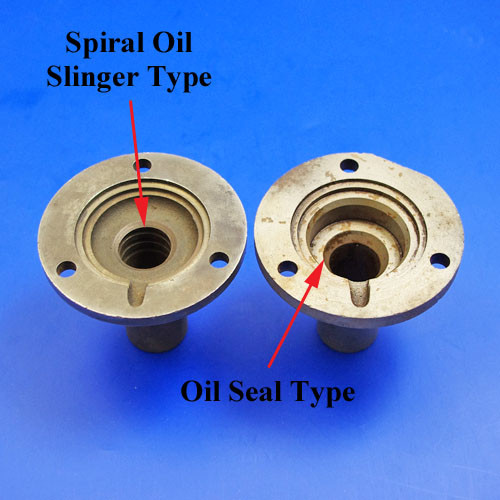

Although not fitted across the range, Use with 30 tooth lay gear, used 1939-59 with 933cc engine. please note oil seal in end piece not spiral cut.
Dimensions - Overall length 175mm, shaft diameter at bearing/seal 25mm o/d, 22mm o/d at splines and 17mm at spigot bearing.
Diagrams including Main input drive gear shaft assy, 14 teeth
Applies to Vehicles
Ford - Model 19, Y (1932 to 1937)
Ford - Model 20, C & CX (1934 to 1937)
Ford - Eight, Model 7Y (1937 to 1939)
Ford - Ten, Model 7W (1937 to 1939)
Ford - Anglia, Model E04A (1939 to 1948)
Ford - Prefect, Model E93A (1939 to 1948)
Ford - Anglia, Model E494A (1949 to 1953)
Ford - Prefect, Model E493A (1949 to 1953)
Ford - Popular, Model 103E/104E (1953 to 1959)
Ford - 5 cwt. Van, Model E04C (1940 to 1948)
Ford - 5 cwt. Van, Model E494C (1949 to 1954)
Ford - 10 cwt. Van, Model E83W (1938 to 1957)
Ford - Estate Car, Model E83W (1949 to 1957)
Ford - Pick-up, Model E83W (1950 to 1957)
