100E gearbox & clutch

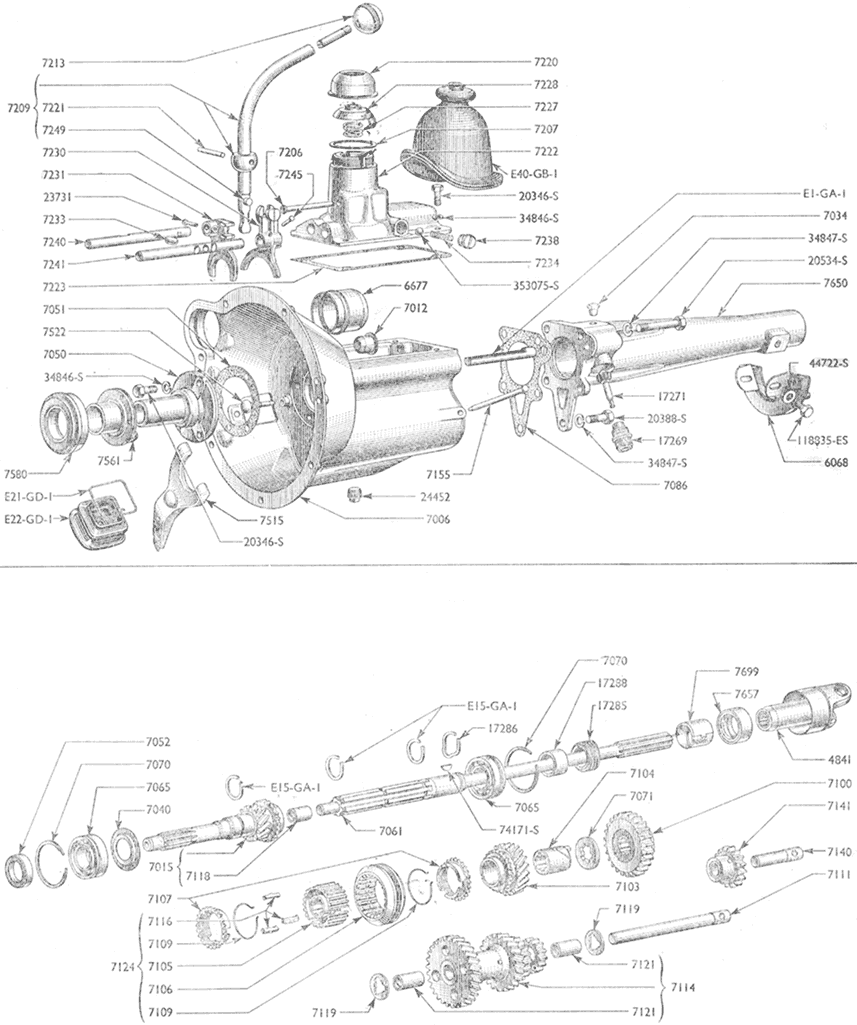

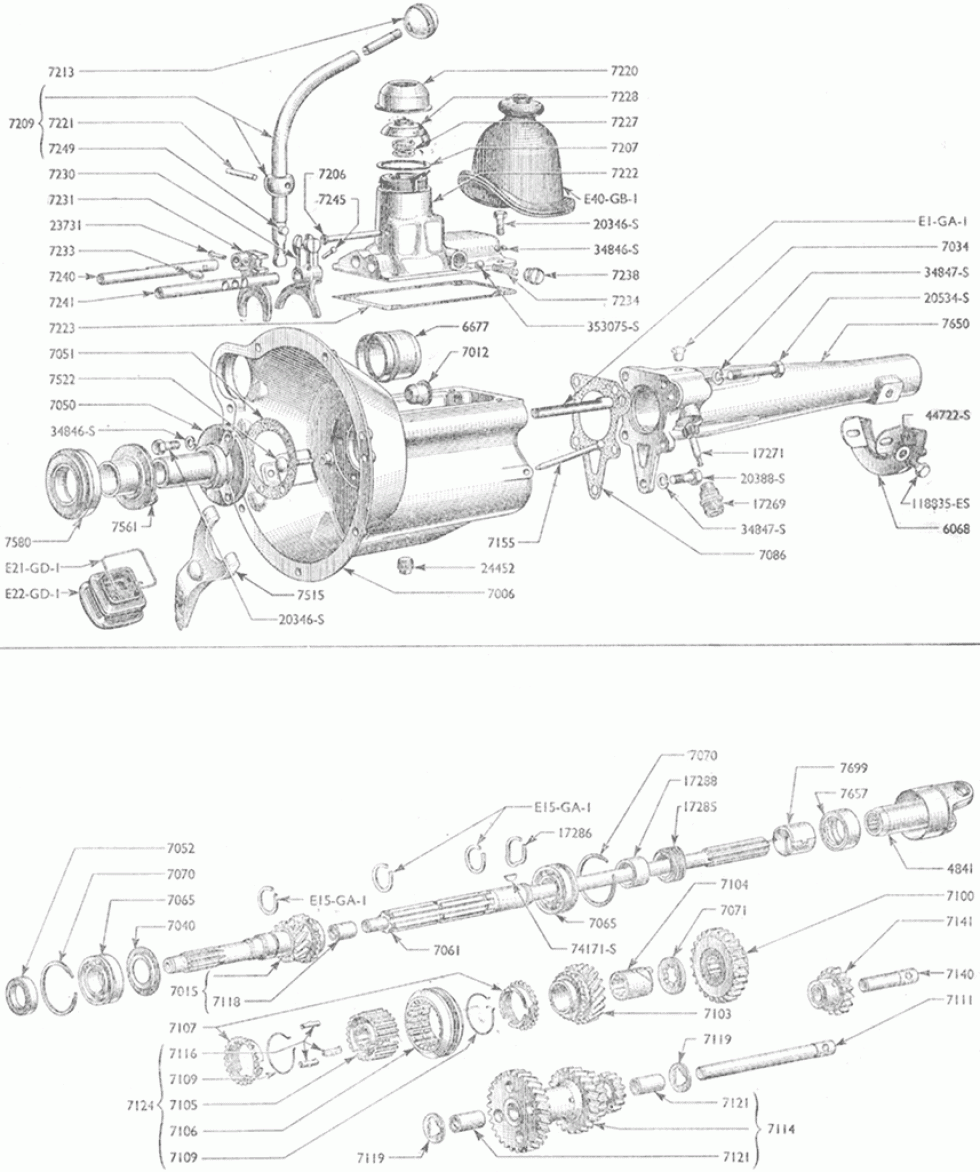

For identification purposes only, reproduced from Ford Motor Company parts list book.
Parts Shown
- 100E6068: Engine mount rear, gearbox mount 100E from £41.81 each
- 100E7111: Countershaft 100E from £27.35 each
- E40GB1: Gear stick/lever gaiter rubber 110mm diameter x 120mm high from £25.27 each
- 7W7052: Gearbox front oil seal (main drive gear) from £10.49 each
- Y7065: Main shaft bearing from £30.10 each
- E15GA1: Gearbox Snap ring Circlip from £4.20 each
- Y7118A: bush (main drive gear) from £19.30 each
- Y7121A: Bush (countershaft gear) from £15.38 each
- E747580A: Clutch release bearing 1932 1962 from £58.07 each
- CE7141: Gear, reverse idler & bush assy. All models 193262 from £30.75 each
- 100E7114A: Lay gear countershaft and bush assembly from £108.99 each
- 100E7015B: Main input drive gear shaft assy from £99.55 each
- E0A7107A: Synchronizer baulk (blocking) ring from £23.37 each
- 100E17286: Speedo gear retaining snap ring from £4.54 each
- 100E6677: Cover for starter motor drive from £22.31 each
- 100E7124: Synchronizer hub assembly from £98.98 each
- 100E7223: gasket from £4.40 each
- 105E7657: Rear gearbox seal (extension housing) from £15.87 each
- E0A7109: Spring ring from £3.99 each
- 100E7140: reverse idler shaft from £26.60 each
- 100E7086A: gearbox gasket from £4.67 each
