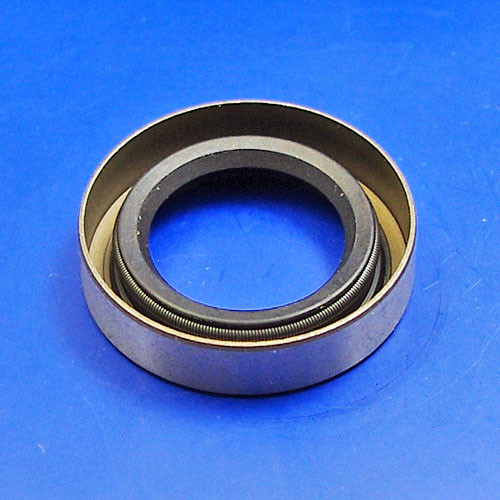

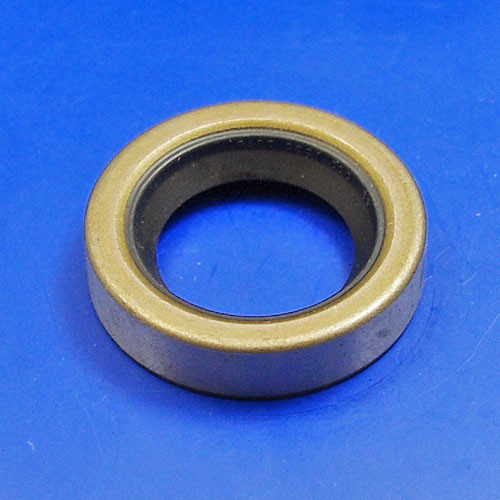

7W-7052 - Gearbox front oil seal (main drive gear)
Front gearbox seal, main drive gear bearing oil seal. locates in gearbox bearing retainer. Fitted on all models 1937-1962
Steel/Rubber seal 41.4mm o/d x 25.5mm i/d x 9.6mm thick, rear edge chamfered for ease of fitting.
also used as part Y-4245 on drive shaft seal in torque tube
Diagrams including Gearbox front oil seal (main drive gear)
Applies to Vehicles
Ford - Model 19, Y (1932 to 1937)
Ford - Model 20, C & CX (1934 to 1937)
Ford - Eight, Model 7Y (1937 to 1939)
Ford - Ten, Model 7W (1937 to 1939)
Ford - Anglia, Model E04A (1939 to 1948)
Ford - Prefect, Model E93A (1939 to 1948)
Ford - Anglia, Model E494A (1949 to 1953)
Ford - Prefect, Model E493A (1949 to 1953)
Ford - Popular, Model 103E/104E (1953 to 1959)
Ford - 5 cwt. Van, Model E04C (1940 to 1948)
Ford - 5 cwt. Van, Model E494C (1949 to 1954)
Ford - 10 cwt. Van, Model E83W (1938 to 1957)
Ford - Estate Car, Model E83W (1949 to 1957)
Ford - Pick-up, Model E83W (1950 to 1957)
Ford - 300E 5cwt & 7cwt Van (1954 to 1961)
Ford - 100E Anglia & Popular (1953 to 1962)
Ford - 100E Prefect (1953 to 1962)
Ford - 100E Escort & Squire (1955 to 1961)
