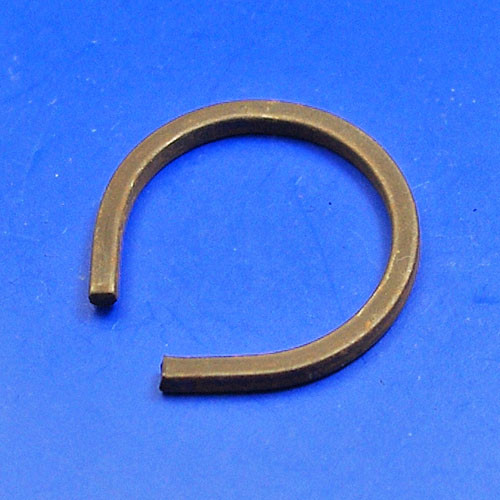

E15-GA-1 - Gearbox Snap ring - Circlip
Main shaft drive gear bearing retaining snap ring.
Two used in 8/10hp gearbox on front and rear bearings
Three used in 100E gearbox, two on the main shaft and one on the first motion shaft.
Dimensions - 29mm o/d x 24mm i/d, 2.2mm square section steel.
Diagrams including Gearbox Snap ring - Circlip
Applies to Vehicles
Ford - Model 19, Y (1932 to 1937)
Ford - Model 20, C & CX (1934 to 1937)
Ford - Eight, Model 7Y (1937 to 1939)
Ford - Ten, Model 7W (1937 to 1939)
Ford - Anglia, Model E04A (1939 to 1948)
Ford - Prefect, Model E93A (1939 to 1948)
Ford - Anglia, Model E494A (1949 to 1953)
Ford - Prefect, Model E493A (1949 to 1953)
Ford - Popular, Model 103E/104E (1953 to 1959)
Ford - 5 cwt. Van, Model E04C (1940 to 1948)
Ford - 5 cwt. Van, Model E494C (1949 to 1954)
Ford - 10 cwt. Van, Model E83W (1938 to 1957)
Ford - Estate Car, Model E83W (1949 to 1957)
Ford - Pick-up, Model E83W (1950 to 1957)
Ford - 300E 5cwt & 7cwt Van (1954 to 1961)
Ford - 100E Anglia & Popular (1953 to 1962)
Ford - 100E Prefect (1953 to 1962)
Ford - 100E Escort & Squire (1955 to 1961)
