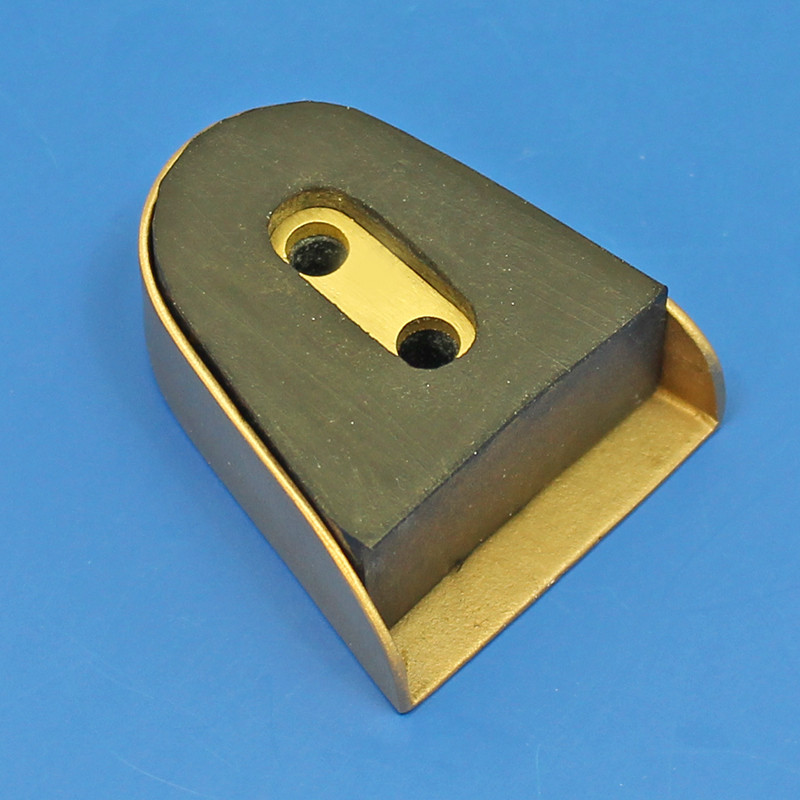

566.08SET - Door buffer wedge assembly - Large, cast bronze

Cast bronze buffer shoe assembly including rubber buffer and screw plate, bronze shoe will require drilling and final polishing with a fine abrasive, bronze shoe dimensions 41mm long x 36mm at widest part x 14mm deep. Buffer 35mm long x 32mm at widest part x 15mm deep. Eyelet 19mm x 7.5mm, two 5mm holes with 12mm centres.

Price From £17.89 / Each (£21.47 inc. VAT) Details & Ordering
566.21 - Door buffer rubber - 34mm x 27mm x 15mm thick

As per illustration - approximate size 34mm x 27mm x 15mm thick.

Price From £3.15 / each (£3.78 inc. VAT) Details & Ordering
566.19 - Door buffer rubber - 36mm x 20mm x 16mm thick

As per illustration - approximate size 36mm x 20mm x 16mm thick

Price From £3.49 / each (£4.19 inc. VAT) Details & Ordering

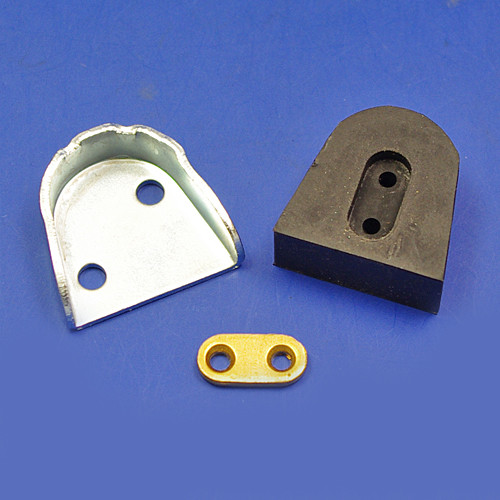

197 - Door buffer wedge - Small

Rubber door buffer complete with plated steel shoe and brass eyelet. Size approx 30mm x 30mm x 14mm thick.

Price From £7.77 / each (£9.32 inc. VAT) Details & Ordering
566.13 - Door buffer rubber - 23mm x 30mm x 16mm thick

As per illustration - approximate size 23mm x 30mm x 16mm thick, insert lug 23mm x 22mm 11mm

Price From £3.73 / each (£4.48 inc. VAT) Details & Ordering
566.08 - Door buffer rubber - 32mm x 35mm x 15mm thick

As per illustration, a larger buffer of approximate size 32mm x 35mm x 15mm thick. This rubber buffer is also available as part of a complete set that also includes a cast bronze buffer shoe and screw plate - please see part number 566.08SET.

Price From £3.65 / each (£4.38 inc. VAT) Details & Ordering
566.07 - Door buffer rubber - 37mm x 26mm x 15mm thick

As per illustration - approximate size 37mm x 26mm x 15mm thick, insert lug 28mm x 13mm x 8 (taper)

Price From £3.15 / each (£3.78 inc. VAT) Details & Ordering
566.06 - Door buffer rubber - 38mm x 31mm x 11mm thick

As per illustration - approximate size 38mm x 31mm x 11mm thick, insert lug 26mm x 18mm x 8mm

Price From £3.15 / each (£3.78 inc. VAT) Details & Ordering
566.05 - Door buffer rubber - 41mm x 32mm x 16mm thick

As per illustration - approximate size 41mm x 32mm x 16mm thick, insert lug 19mm x 19mm x 9mm.

Price From £3.15 / each (£3.78 inc. VAT) Details & Ordering
566.04 - Door buffer rubber - 32mm x 24mm x 13mm thick

As per illustration - approx size 32mm x 24mm x 13mm thick, insert lug 25mm x 17 (taper) x 13mm

Price From £3.15 / each (£3.78 inc. VAT) Details & Ordering
566.03 - Door buffer rubber - 32mm x 18mm x 13mm thick

As per illustration - approximate size 32mm x 18mm x 13mm thick, insert lug 22mm x 13mm x 10mm.

Price From £3.15 / each (£3.78 inc. VAT) Details & Ordering
566.218 - Door buffer rubber - 25mm x 29mm x 13mm thick

As per illustration - approximate size 25mm x 29mm x 13mm thick, insert lug 17mm x 29mm x 7mm

Price From £3.15 / each (£3.78 inc. VAT) Details & Ordering
566.217 - Door buffer rubber - 29mm x 23mm x 13mm thick

As per illustration - approx size 29mm x 23mm x 13mm thick, insert lug 21mm x 16mm x 10mm.

Price From £3.15 / each (£3.78 inc. VAT) Details & Ordering
566.216 - Door buffer rubber - 36mm x 31mm x 14mm thick

As per illustration - approximate size 36mm x 31mm x 14mm thick, insert lug 32mm x 25mm x 7mm.

Price From £3.15 / each (£3.78 inc. VAT) Details & Ordering
566.02 - Door buffer rubber - 32mm x 23mm x 14mm thick

As per illustration - approximate size 32mm x 23mm x 14mm thick, insert lug 22mm x 14mm x 10mm

Price From £3.15 / each (£3.78 inc. VAT) Details & Ordering
566.12 - Door buffer rubber - 38mm x 23mm x 14mm thick

As per illustration - approximate size 38mm x 23mm x 14mm thick, insert lug 27mm x 18mm x 9mm

Price From £3.96 / each (£4.75 inc. VAT) Details & Ordering
566.11 - Door buffer rubber - 31mm x 29mm x 13mm thick

As per illustration - approximate size 31mm x 29mm x 13mm thick, insert lug 31mm x 19mm x 8mm

Price From £3.15 / each (£3.78 inc. VAT) Details & Ordering
566.10 - Door buffer rubber - 31mm x 24 mm x 9mm thick

As per illustration - approximate size 31mm x 24 mm x 9mm thick, insert lug 27mm x 18mm x 8mm

Price From £3.36 / each (£4.03 inc. VAT) Details & Ordering
566.01 - Door buffer rubber - 32mm x 23mm x 16mm thick

As per illustration - approximate size 32mm x 23mm x 16mm thick. Insert lug 25mm x 14mm x 13mm

Price From £3.29 / each (£3.95 inc. VAT) Details & Ordering

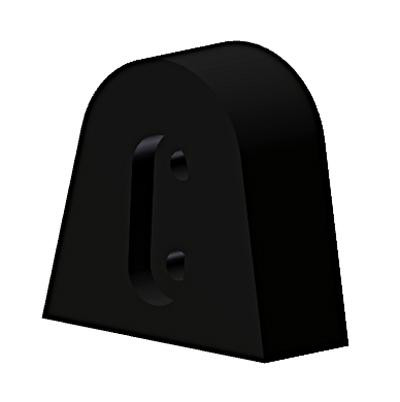

198 - Door buffer rubber - 28mm x 28mm x 12mm thick

As per illustration - approximate size 28mm x 28mm x 12mm thick. This buffer is also available as part of complete assembly with plated steel shoe and brass eyelet - please see part number 197.

Price From £3.28 / each (£3.94 inc. VAT) Details & Ordering
