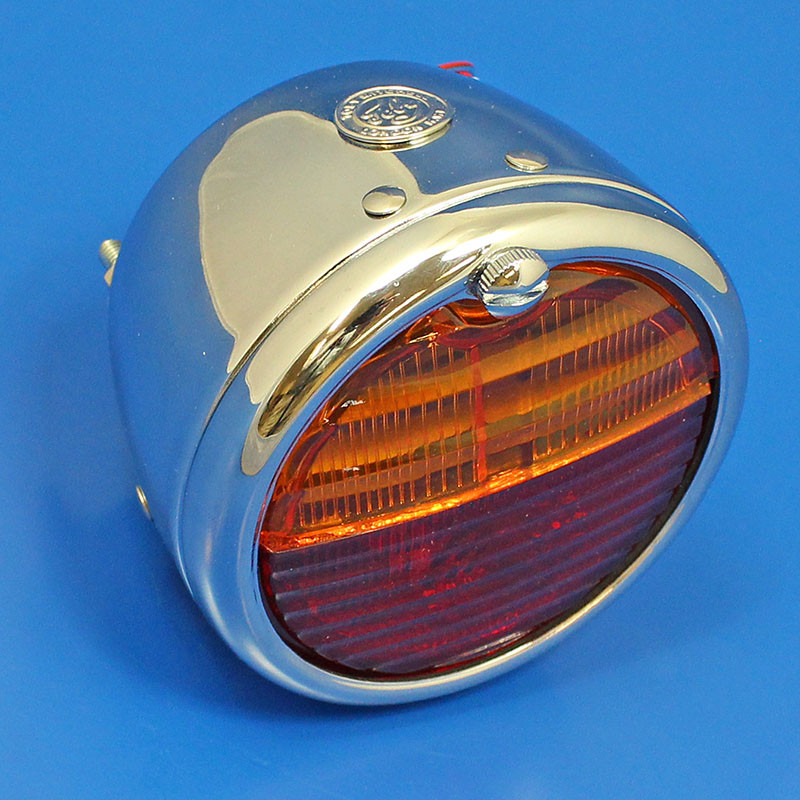

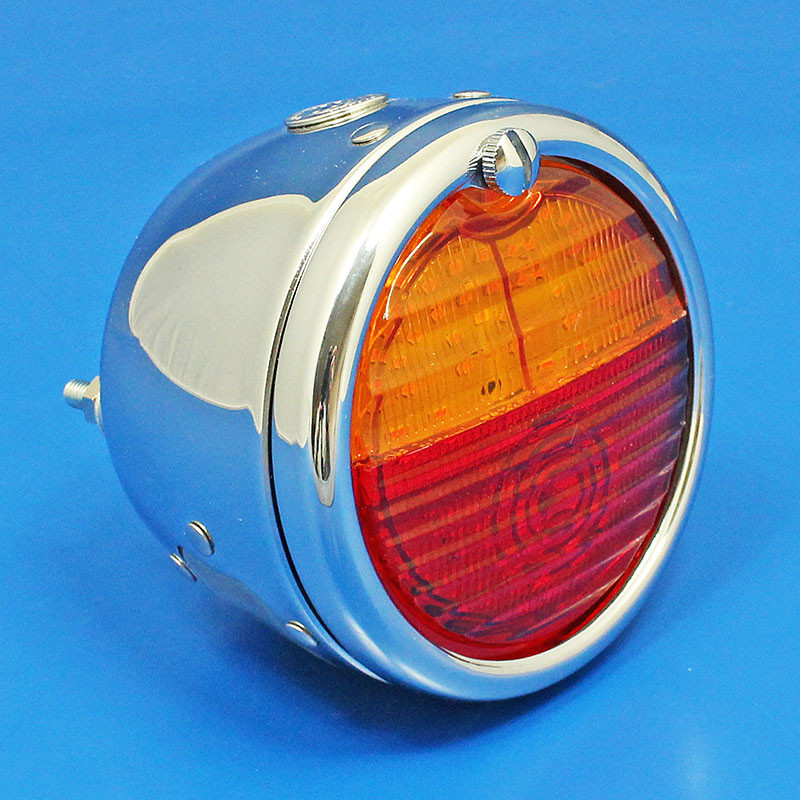

Toby chrome ST38/'Pork Pie' type lamp with standard (three BA15S) bulb holder arrangement, fitted with a LED light board and split Red/Amber lens for Stop, Tail, INDICATOR Number Plate illumination operation. On board electronics make this product suitable for 6V & 12V vehicles and Positive & Negative earth systems.

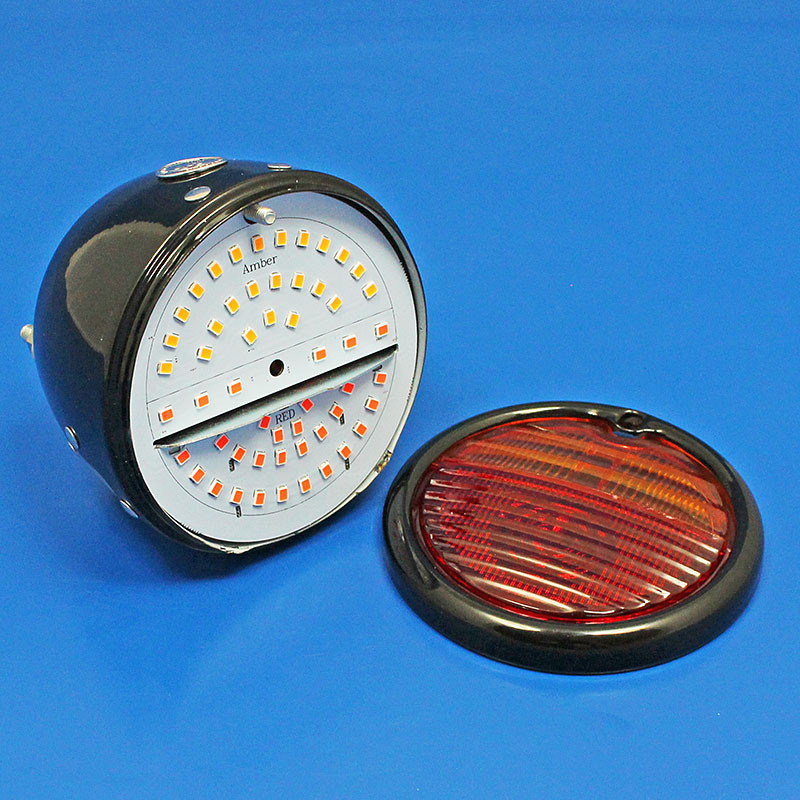

The product features a main, circular RED and AMBER light board with a centre slot that fits over/locates on the vertical partition of the triple bulb holder bolted into the ST38 body. An additional WHITE LED light board is attached perpendicular to the main board to provide number plate illumination.
58mm centre to centre between mounting studs on rear
The board is fitted with three BA15S bulb base connectors on 10cm connecting wires. One connection illuminates the Tail light (first brightness RED) and the Number Plate light (WHITE). The second connection illuminates the Stop light (second brightness RED). The third connection illuminates the AMBER indication/turn signal LEDs.
The LED board has a very low power requirement and provides great all over lens lighting from 30 RED LEDs and 24 AMBER LEDs, with the fast response time/illumination under braking characteristic of LEDs - plus a good distinction between STOP and TAIL brightness's. Fully assembled and ready to fit. Please note that the indicator function requires use of an electronic flasher unit e.g.12V LEDFLASH3
Fitted with chrome on brass 'Toby' medallion, as applied to our finest early lamp and mirror recreations. 'Toby Mitchell - London NW1' is the mark Vintage Supplies has applied to its authentic reproductions of selected early CAV and Lucas pattern lamps and mirrors for over 30 years, continuing the manufacture and development of John Mitchell high quality 'Toby' branded product range. -- Toby chrome ST38/'Pork Pie' type lamp with standard (three BA15S) bulb holder arrangement, fitted with a LED light board and split Red/Amber lens for Stop, Tail, and INDICATOR operation. On board electronics make this product suitable for 6V & 12V vehicles and Positive & Negative earth systems.

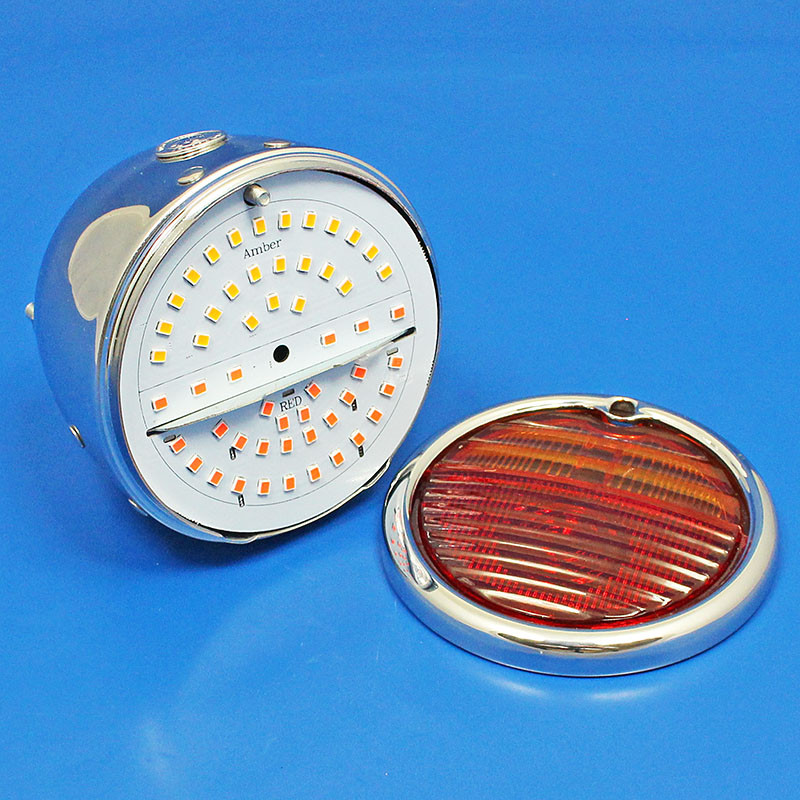

The product features a main, circular RED and AMBER light board with a centre slot that fits over/locates on the vertical partition of the triple bulb holder bolted into the ST38 body.
58mm centre to centre between mounting studs on rear
The board is fitted with three BA15S bulb base connectors on 10cm connecting wires. One connection illuminates the Tail light (first brightness RED). The second connection illuminates the Stop light (second brightness RED). The third connection illuminates the AMBER indication/turn signal LEDs.
The LED board has a very low power requirement and provides great all over lens lighting from 30 RED LEDs and 24 AMBER LEDs, with the fast response time/illumination under braking characteristic of LEDs - plus a good distinction between STOP and TAIL brightness's. Fully assembled and ready to fit. Please note that the indicator function requires use of an electronic flasher unit e.g.12V LEDFLASH3
Fitted with chrome on brass 'Toby' medallion, as applied to our finest early lamp and mirror recreations. 'Toby Mitchell - London NW1' is the mark Vintage Supplies has applied to its authentic reproductions of selected early CAV and Lucas pattern lamps and mirrors for over 30 years, continuing the manufacture and development of John Mitchell high quality 'Toby' branded product range.
