  • CWX-ARM - Wiper motor arm - For Lucas CWX type motors

    Wiper motor arm - For Lucas CWX type motors
    Crome finished die cast lever arm for rear of Lucas CWX type wiper motor case. 36mm long arm with locating pin in end. 27mm total depth, 5.25mm bore through spindle, with 6mm counter bore 9mm deep in top. New old stock.
    Price From £20.49 / Each (£24.59 inc. VAT) Details & Ordering
  • CWX-SPIN - Wiper motor spindle - For Lucas CWX type motors

    Wiper motor spindle - For Lucas CWX type motors
    Lucas CWX type wiper motor spindle. Made from brass. 165mm long, 5mm diameter, 6mm long threaded section at one end, three cross holes 1.5mm diameter at 20mm, 34mm and 88mm from the threaded end.
    Price From £19.89 / Each (£23.87 inc. VAT) Details & Ordering
  • CWX-BRU - Wiper motor brush - For Lucas CWX type motors

    Wiper motor brush - For Lucas CWX type motors
    Carbon brush with copper wire connection for Lucas type CWX wiper motors. 11mm x 5mm x 4.25mm
    Price From £7.70 / Each (£9.24 inc. VAT) Details & Ordering
  • CWX-SPR2 - Wiper motor spring, 6.4mm x 34mm - For Lucas CWX type motors

    Wiper motor spring, 6.4mm x 34mm - For Lucas CWX type motors
    Large spring used in Lucas CWX type wiper motors - 6.4mm OD, 34mm free length, 0.6mm wire diameter.
    Price From £7.14 / Each (£8.57 inc. VAT) Details & Ordering
  • CWX-SPR1 - Wiper motor spring, 3.6mm x 12mm - For Lucas CWX type motors

    Wiper motor spring, 3.6mm x 12mm - For Lucas CWX type motors
    Small spring used in Lucas CWX type wiper motors - 3.6mm OD, 12mm free length, 0.3mm wire diameter.
    Price From £5.49 / Each (£6.59 inc. VAT) Details & Ordering
  • CWX-CORK - Wiper motor cork spacer/gasket - For Lucas CWX type motors

    Wiper motor cork spacer/gasket - For Lucas CWX type motors
    Cork spacer/gasket for Lucas CWX type motors. 48mm long x 19mm wide with radiused corners, 3mm thick. Two mounting holes 4mm diameter, 39mm between centres. Central hole 6.5mm diameter. All 3 hole centres offset accross width at 10.5mm.
    Price From £3.21 / Each (£3.85 inc. VAT) Details & Ordering
  • CWX-MT2 - Wiper motor plastic spacer mount with metal spindle tube - For Lucas CWX type motors

    Wiper motor plastic spacer mount with metal spindle tube - For Lucas CWX type motors
    Plastic spacer for Lucas CWX type motors complete with metal spindle tube. 48mm long x 19mm wide with radiused corners, 13mm thick. Mounting holes 4.75mm diameter with counterbore recess 6.25mm diameter, 39mm between centres. Pressed in metal spindle tube 13mm long with clearance hole for spindle. All 3 hole centres offset accross width at 10.5mm.
    Price From £16.56 / Each (£19.87 inc. VAT) Details & Ordering
  • CWX-MT1 - Wiper motor plastic spacer mount - For Lucas CWX type motors

    Wiper motor plastic spacer mount - For Lucas CWX type motors
    Plastic spacer for Lucas CWX type motors. 48mm long x 19mm wide with radiused corners, 6.5mm thick. Two mounting holes 4.75mm diameter, 39mm between centres. Central hole 10.5mm diameter. All 3 hole centres offset accross width at 10.5mm.
    Price From £6.59 / Each (£7.91 inc. VAT) Details & Ordering
  • CWX-BKT - Wiper motor stop plate - For Lucas CW1, CWX and CWH type motors

    Wiper motor stop plate - For Lucas CW1, CWX and CWH type motors
    Wiper motor stop plate as fitted to CW1, CWX and CWH screen mounted wiper motors, restricts wiper arm sweep. Made from 2.4mm thick powered coated steel, face plate 63mm wide x 18mm tall with two 6mm wide x 38mm long stop bars. Three holes in the face plate, two securing outer holes and one centre hole for wiper motor drive shaft.
    Price From £8.33 / Each (£10 inc. VAT) Details & Ordering
  • 741583 - Wiper motor three stud flexible fixing mount - For Lucas CR and CRT motors

    Wiper motor three stud flexible fixing mount - For Lucas CR and CRT motors
    3 x 1/4" diameter stud wiper motor fixing for Lucas CR and CRT wiper motors. Equivalent to Lucas part number 741583, overall dimensions 53mm at widest x 75mm long.
    Price From £19.44 / each (£23.33 inc. VAT) Details & Ordering
  • CWX-PLATE - Chrome on brass cover plate for CWX wiper motor spindle and mounting studs

    Chrome on brass cover plate for CWX wiper motor spindle and mounting studs
    Chrome on prass cover plate for CWX wiper motors. Fits over twin mounting studs and central spindle. 5.4mm diameter mounting stud holes (38mm between centres), 6.0mm diameter central spindle hole with raised surround.
    Price From £13.03 / Each (£15.64 inc. VAT) Details & Ordering
  • 405 - Vacuum wiper system tube - 1/8" ID, 5/16" OD

    Vacuum wiper system tube - 1/8
    Black vacuum wiper system tubing, 1/8" (3.25mm) ID x 5/16" (8mm) OB with fine ribs.
    Price From £5.15 / metre (£6.18 inc. VAT) Details & Ordering
  • CA395 - Windscreen wiper arm convertor - Shaft to spline

    Windscreen wiper arm convertor - Shaft to spline
    Adaptor to enable the fitting of a spline shaft wiper arm on to a shaft. Secures with a pinch bolt. Dimensions 20mm tall with a 19mm diameter base, central bore 6mm (7/32"), 13.6mm spline.
    Price From £8.33 / each (£10 inc. VAT) Details & Ordering

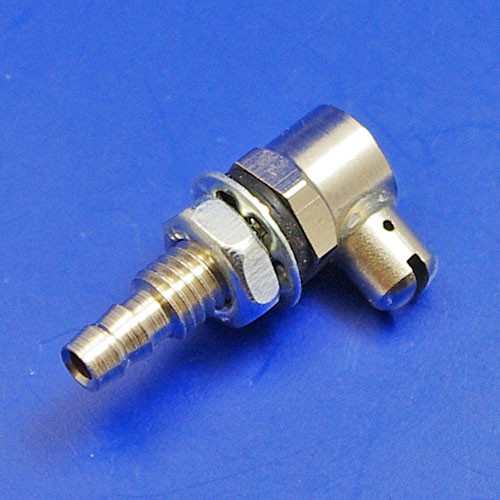

  • 214S - Windscreen washer - Single jet

    Windscreen washer - Single jet
    Single jet, small (8mm diameter), chrome plate. Requires 4.65mm hole through metal panel, pipe connection 3.5mm. Equivalent to Lucas WSB136 type jet.
    Price From £8.05 / each (£9.66 inc. VAT) Details & Ordering

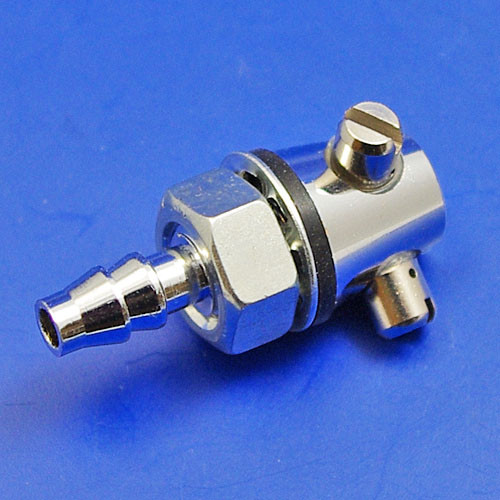

  • 214D - Windscreen washer - Twin jet

    Windscreen washer - Twin jet
    Double jet, nickel plated. Approximate 13mm diameter. Requires 7.7mm hole through metal panel, pipe connection 4.5mm. Equivalent to Lucas WSB131 type jet.
    Price From £8.82 / each (£10.58 inc. VAT) Details & Ordering

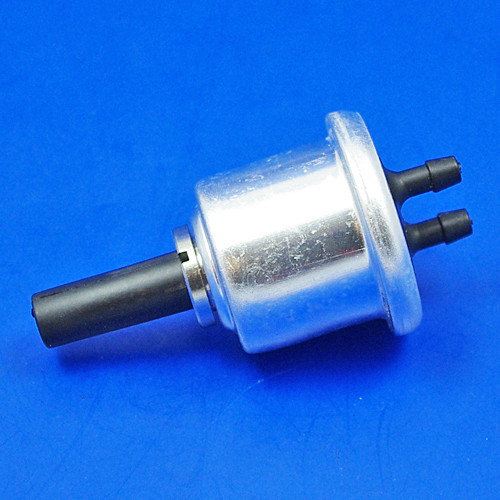

  • 909A - Manual windscreen washer pump

    Manual windscreen washer pump
    Windscreen washer pump, manual push black plastic button, dimensions 80mm overall length, 42mm diameter at widest point (rear flange), main body 34mm, 15mm diameter mounting boss thread. Will fit through a panel with a max thickness of 3mm.
    Price From £20.46 / each (£24.55 inc. VAT) Details & Ordering

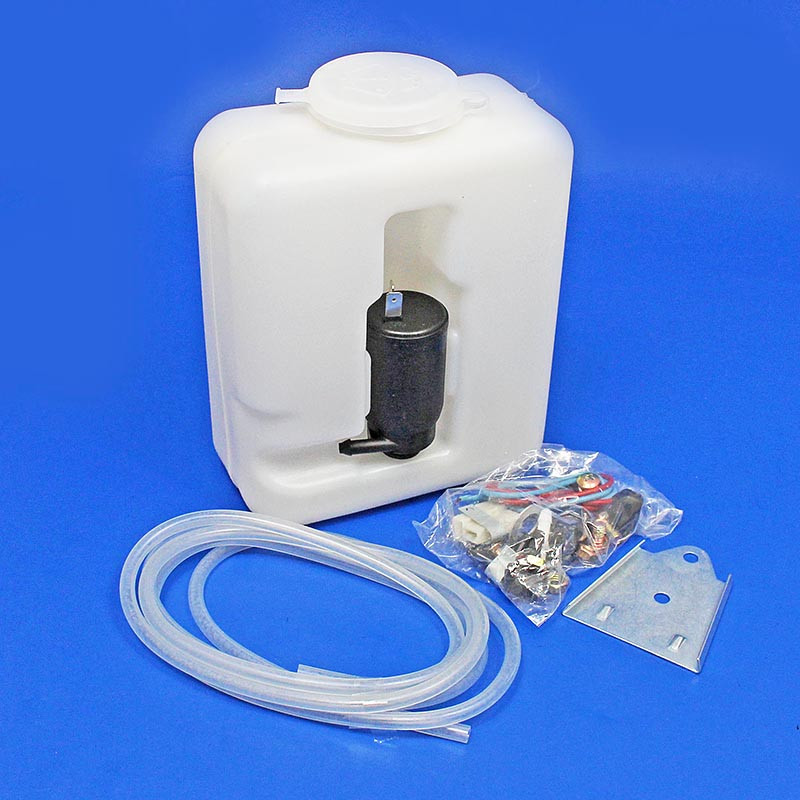

  • CA1373 - Windscreen washer bottle kit with integral 12V pump - 1.2 litre capacity

    Windscreen washer bottle kit with integral 12V pump - 1.2 litre capacity
    Plastic washer bottle kit with built in 12 volt pump with mounting bracket. 170mm tall (185mm including cap) x 140mm wide x 70mm deep, mounting bracket 60mm wide tapering to 45mm wide, 69mm tall. Includes two single jets, bracket, push button, hose, electrical connector etc.
    Price From £26.78 / each (£32.14 inc. VAT) Details & Ordering

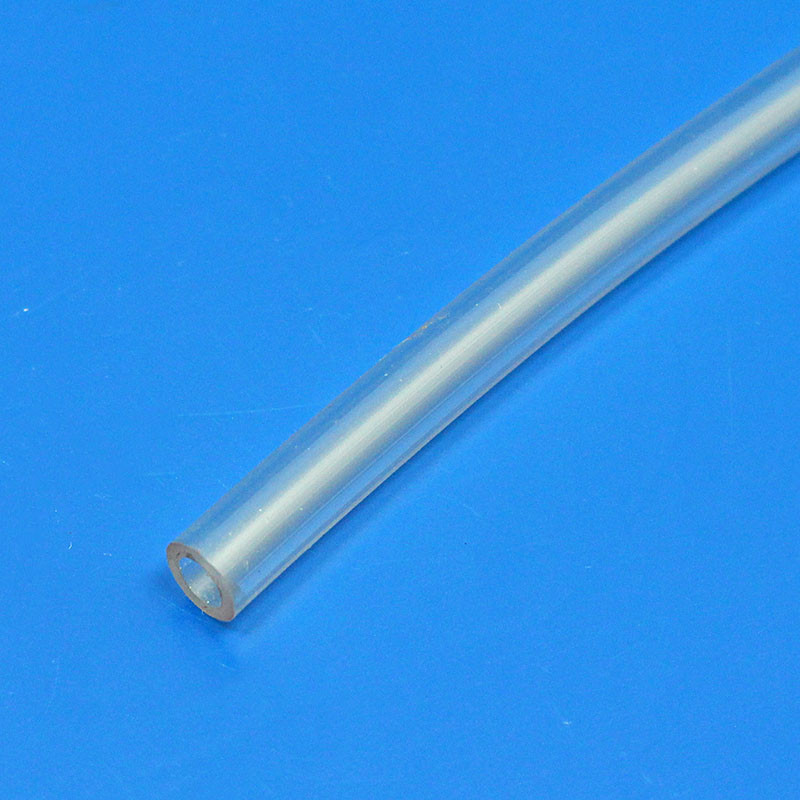

  • WASHER-TUBE - Windscreen washer tube - 3.75mm ID, 6.25mm OD

    Windscreen washer tube - 3.75mm ID, 6.25mm OD
    Clear plastic windscreen washer system tube - 6.25mm OD and 3.75mm ID. Sold by the metre.
    Price From £2.88 / Metre (£3.46 inc. VAT) Details & Ordering

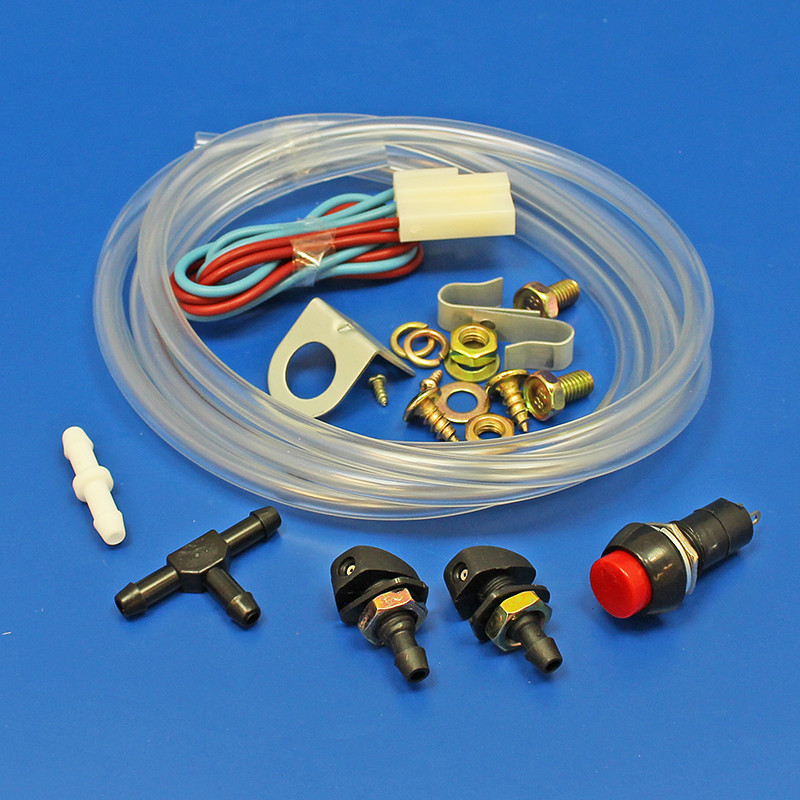

  • WAKIT - Windscreen washer accessory kit

    Windscreen washer accessory kit
    Windscreen washer accessory kit – two black double/twin washer jets, a tee piece, a straight connector, 1.8m plastic tube, a wiring loom, push switch, clips for the tube, a bracket, bolts and screws.
    Price From £10.26 / each (£12.31 inc. VAT) Details & Ordering

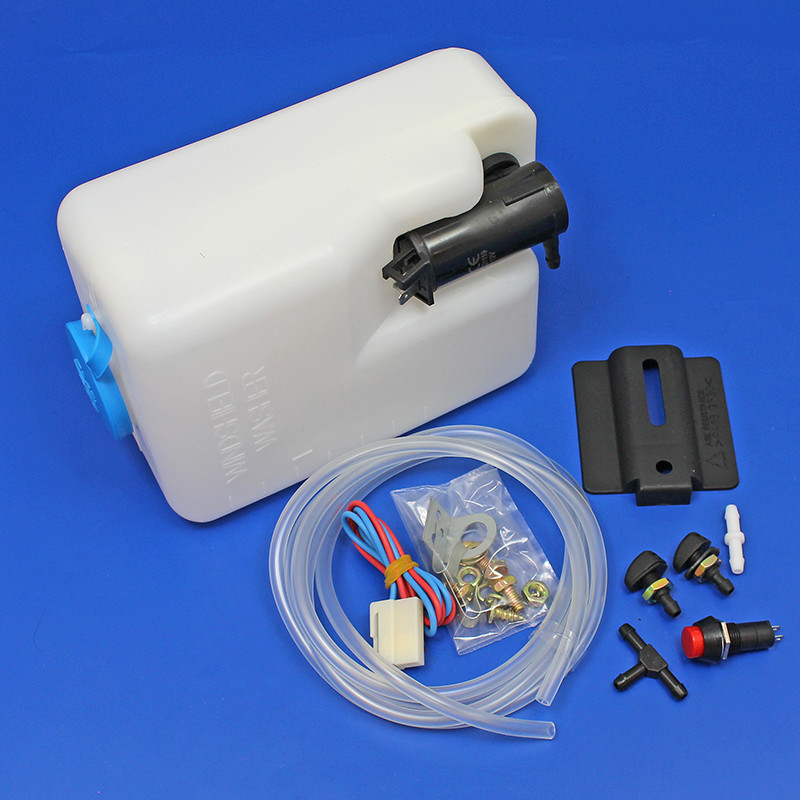

  • CA1373L - Windscreen washer bottle kit with integral 12V pump - 1.6 litre capacity

    Windscreen washer bottle kit with integral 12V pump - 1.6 litre capacity
    Larger capacity plastic washer bottle kit with built in 12 volt pump with mounting bracket. Dimensions -  180mm tall (190mm including cap) x 120mm wide x 100mm deep, mounting bracket 65mm wide and 75mm tall with mounting hole and slot for flexibility. Supplied with two twin jets, bracket, push button, hose, electrical connector etc.
    Price From £24.13 / Each (£28.96 inc. VAT) Details & Ordering
