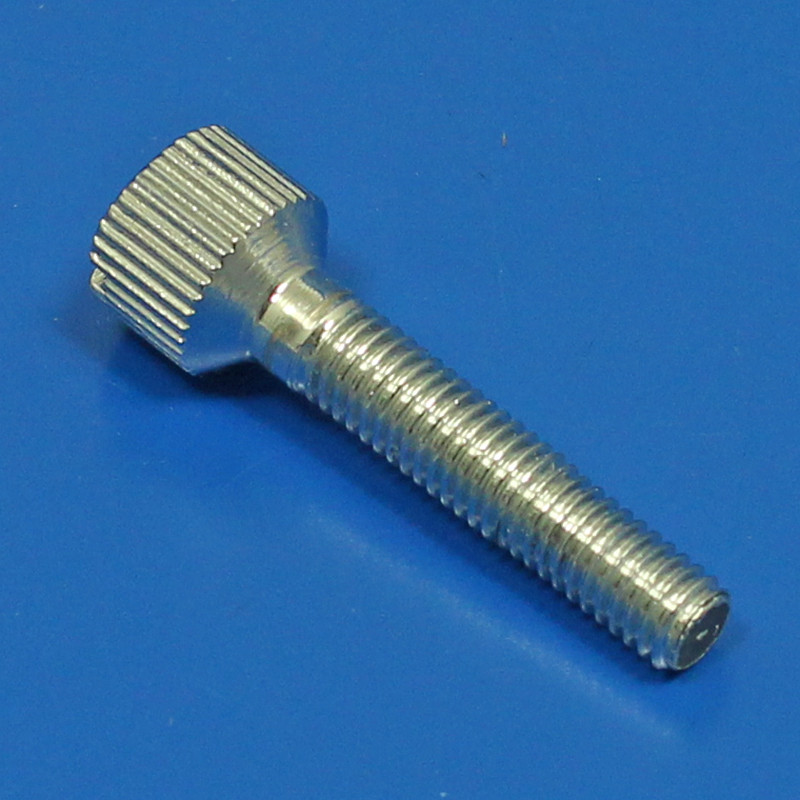

  • 641P - Knurled headlamp rim screw - 33mm long, 2BA thread

    Knurled headlamp rim screw - 33mm long, 2BA thread
    Knurled and slotted headlamp rim screw for Lucas L140, L150 etc. type headlamps. Overall length 33mm (head 9mm, thread length 24mm), head diameter 10mm. 2BA thread. Chrome plated brass. Offered as a lower cost alternative the 641 Daisy head screw.
    Price From £11.45 / Each (£13.74 inc. VAT) Details & Ordering

  • 13016-B - Headlamp rim catch - 2BA thread, used with 13016-A and 641

    Headlamp rim catch - 2BA thread, used with 13016-A and 641
    Chome plated bronze bracket for Lucas type headlamps such as the L140. Fits inside the headlamp shell rim - the tongue fits through the slot which then accepts the rim fixing screw 641 in a 2BA threaded hole, with the base of screw 641 pulling on to catch 13016-A, located in the lamp rim. Dimensions 24mm x 13mm, threaded screw tongue 15mm wide x 13.5mm tall.
    Price From £14.46 / Each (£17.35 inc. VAT) Details & Ordering

  • 13016-A - Headlamp rim catch - Used with 13016-B and 641

    Headlamp rim catch - Used with 13016-B and 641
    Chrome plated bronze bracket for Lucas type headlamps such as the L140. Fits through a slot in the headlamp rim, and the base of the daisy headed rim fixing screw (part number 641) locates in the split socket, with the threaded part screwing into catch 13016-B located in the lamp shell, pulling shell and rim together. Dimensions 38mm x 15mm, screw tongue 15mm wide x 9mm tall.
    Price From £14.46 / Each (£17.35 inc. VAT) Details & Ordering

  • E1ADKN-13050 - Headlamp rim retaining boss - Stainless steel, Butler type

    Headlamp rim retaining boss - Stainless steel, Butler type
    Used in Butler type lamps - stainless steel. Use with E1ADKN-13047
    Price From £4.48 / each (£5.38 inc. VAT) Details & Ordering

  • E1ADKN-13047/50 - Headlamp rim screw and boss assembly - Butler type

    Headlamp rim screw and boss assembly - Butler type
    Butler type headlamp screw/stud and catch barrel/boss.
    Price From £10.90 / each (£13.08 inc. VAT) Details & Ordering

  • E1ADKN-13047 - Headlamp rim retaining screw - Stainless steel, Butler type

    Headlamp rim retaining screw - Stainless steel, Butler type
    Stainless steel headlamp rim retaining screw, for use with E1ADKN-13050
    Price From £6.71 / each (£8.05 inc. VAT) Details & Ordering

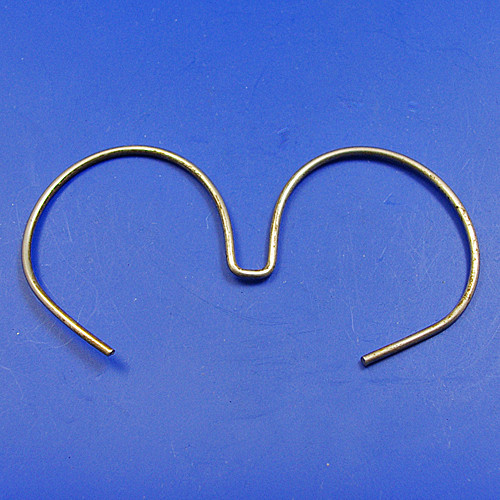

  • 864 - Headlamp rim clip wire spring - LARGE spectacle shape (equivalent to Lucas part 509191)

    Headlamp rim clip wire spring - LARGE spectacle shape (equivalent to Lucas part 509191)
    Spring (spectacle shape -35mm from bend to top x 78mm wide) for headlamp rims that use the short rim catch clip (our 863B), equivalent to Lucas part number 509191
    Price From £4.89 / each (£5.87 inc. VAT) Details & Ordering

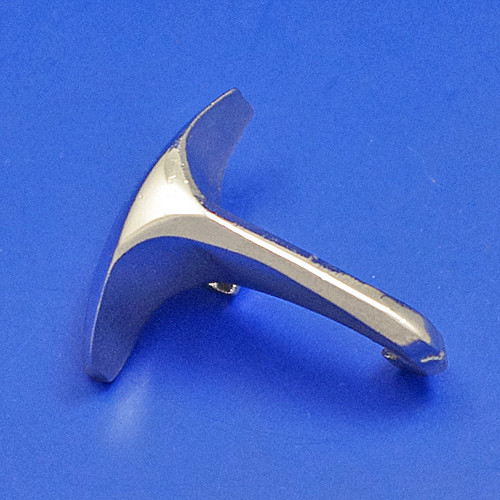

  • 863B - Headlamp rim catch as Lucas part 509936

    Headlamp rim catch as Lucas part 509936
    Chromium plated rim catch, for Lucas type head lamps, short style, overall dimensions 31mm long x 27mm wide, equivalent to original Lucas part number 509936. Use with 'spectacle' wire spring clip - our part number 864.
    Price From £15.60 / each (£18.72 inc. VAT) Details & Ordering

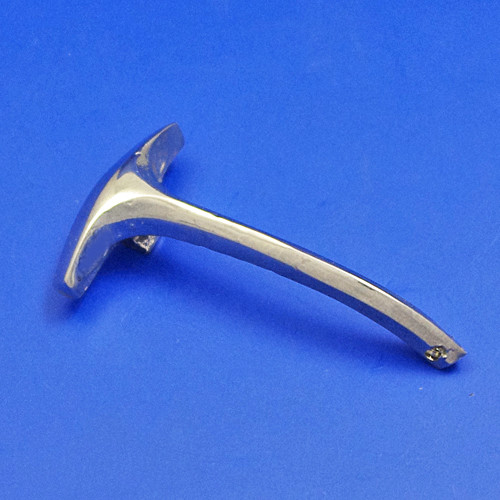

  • 863A - Headlamp rim catch - Part of Lucas assembly no. 532590

    Headlamp rim catch - Part of Lucas assembly no. 532590
    Chrome on bronze rim catch for Lucas head lamps, long type, overall dimensions 45mm long x 26mm wide. Makes Lucas assembly part no. 532590 with compression spring - part number 864A - and a small wire pin through the pre-drilled hole in the end of the catch.
    Price From £17.14 / each (£20.57 inc. VAT) Details & Ordering

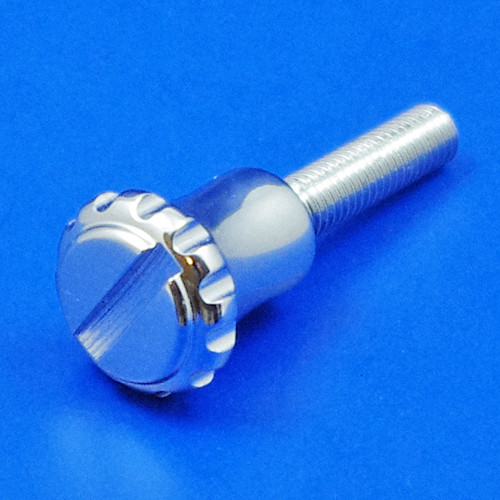

  • 641 - Headlamp daisy head rim screw - 36mm long

    Headlamp daisy head rim screw - 36mm long
    Daisy head headlamp rim screw for the Lucas L140 & L150 headlamps, overall length 36mm (head 18mm, thread 18mm) head diameter 15mm tapering down to 9mm, with a 2BA thread. Chrome plated brass.
    Price From £17.95 / Each (£21.54 inc. VAT) Details & Ordering

  • E04C-13016 - Headlamp rim catch - Plain tabs, 5mm slot

    Headlamp rim catch - Plain tabs, 5mm slot
    Silver painted bronze bracket. Fits inside headlamp rim, the tongue fits through the rim slot which then accepts rim fixing screw. Dimensions 36mm x 13mm, screw tongue 17mm wide x 13mm tall with 5mm slot.
    Price From £10.59 / each (£12.71 inc. VAT) Details & Ordering

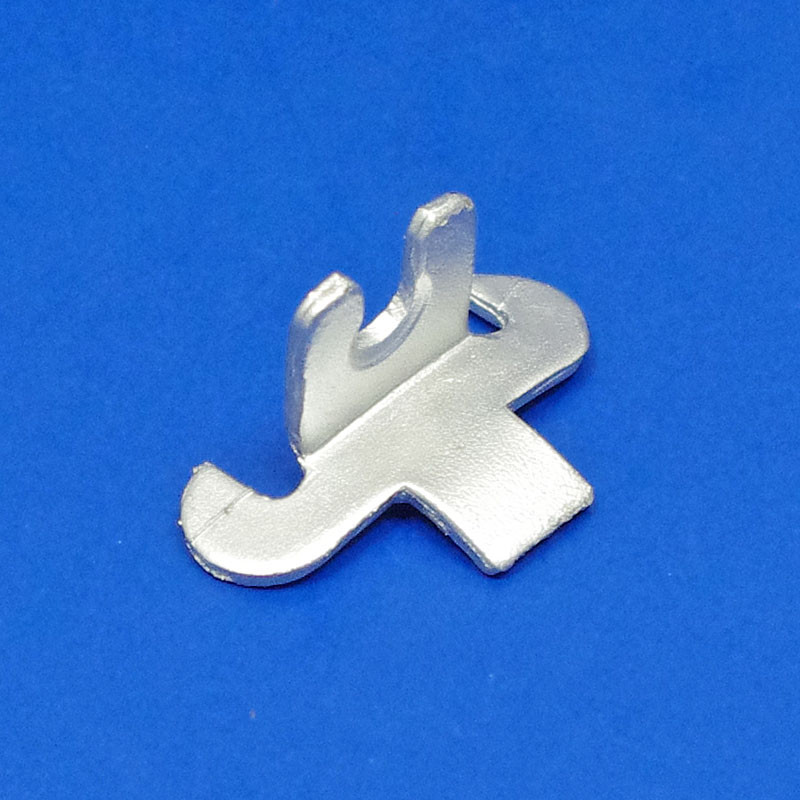

  • 13016-D - Headlamp rim catch - Eared tabs, 5mm slot

    Headlamp rim catch - Eared tabs, 5mm slot
    Silver painted bronze bracket. Fits inside headlamp rim, tongue fits through rim slot which then accepts rim fixing screw. Dimensions 36mm x 18mm, screw tongue 17mm wide x 15mm tall with 5mm slot.
    Price From £10.59 / Each (£12.71 inc. VAT) Details & Ordering

  • 13016-C - Headlamp rim catch - Plain 5mm diameter hole

    Headlamp rim catch - Plain 5mm diameter hole
    Silver painted bronze bracket for some Lucas type headlamps. Fits inside headlamp shell, the tongue fits through rim slot which then accepts a rim fixing screw through a plain 5mm diameter hole, that needs to be backed with a nut. Dimensions 28mm x 13mm, threaded screw tongue 18mm wide x 13.5mm tall.
    Price From £10.59 / Each (£12.71 inc. VAT) Details & Ordering

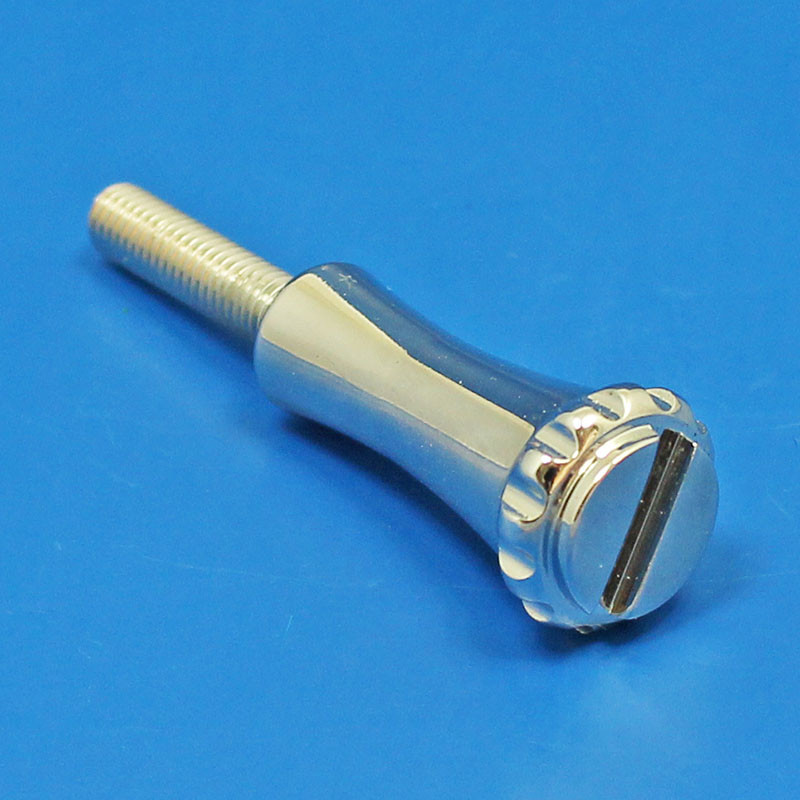

  • 641L - Headlamp daisy head rim screw - 50mm long

    Headlamp daisy head rim screw - 50mm long
    Long daisy head head and spot lamp rim screw for some large Lucas headlamps including the P80, overall length 49mm (head 29mm, thread 20mm) head diameter 15mm tapering down to 9mm, with a 2BA thread. Chrome plated brass.
    Price From £18.95 / Each (£22.74 inc. VAT) Details & Ordering

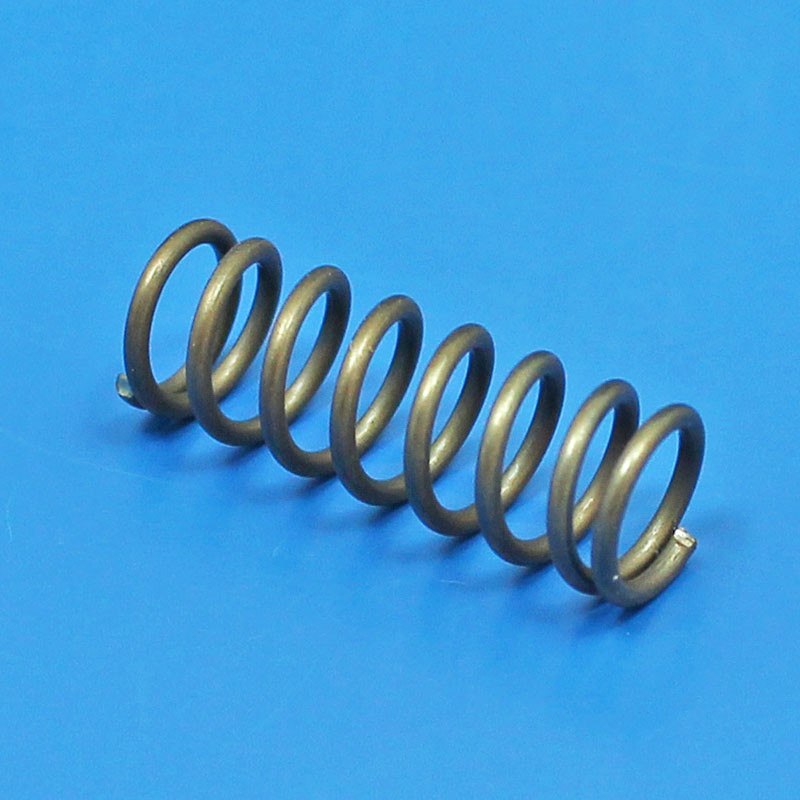

  • 864A - Headlamp rim clip compression spring - part of Lucas assembly no. 532590

    Headlamp rim clip compression spring - part of Lucas assembly no. 532590
    Compression spring for use with long rim catch part no. 863A. The spring is held in place by a small roll pin inserted through the end of the catch). Makes Lucas part no assembly 532590
    Price From £4.57 / Each (£5.48 inc. VAT) Details & Ordering

  • 864B - Headlamp rim clip wire spring - SMALL spectacle shape

    Headlamp rim clip wire spring - SMALL spectacle shape
    Clip wire spring (SMALL spectacle shape - 30mm x 64mm) commonly used on motorcycle headlamp rims (e.g on the DU and MU42) that use the short rim catch clip (our 863B),
    Price From £3.59 / Each (£4.31 inc. VAT) Details & Ordering
