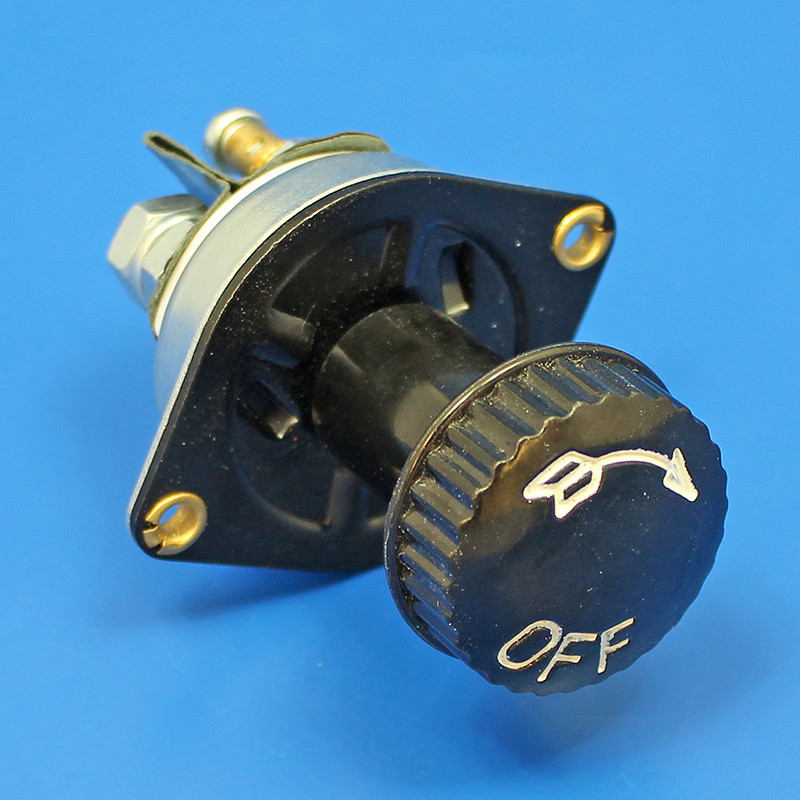

Battery isolator rotary master switch, suitable for 6v, 12v, or 24-voltReproduction of Lucas SSB103. Also listed as part number 76604, 76605, 1B2804, ST330As used on many cars including Austin Healey, Aston Martin, Land Rover, MGA, Morris, etc.
The continuous load rating at 12v is 150ampsShort/Max load at 12v (example starting) is 500amps
Voltage
12v
24v
Continuous Load
150 amps
75 amps
Short Max Load
500 amps
250 amp
Easy to isolate the battery from the vehicle chassis for safe maintenance and avoiding battery drain when the vehicle is not in use. Optional additional function for emergency engine cut-out (see wiring diagram)
Fitting & Wiring Guide
